Tiny

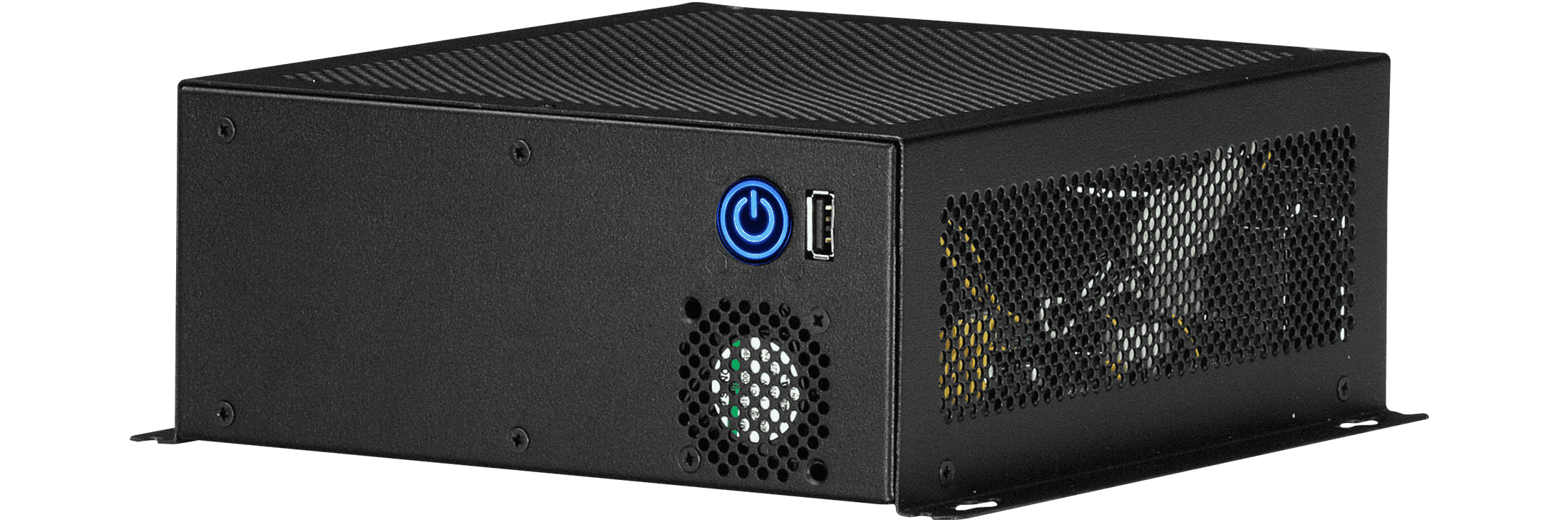

Der Tiny PC ist der Beweis dafür, dass große Dinge in kleinen Paketen kommen. Mit Abmessungen von nur 215 x 217 x 80 mm ist dieses kompakte und dennoch leistungsstarke Gehäuse ideal für alle, die Leistung benötigen, ohne Kompromisse beim Platzbedarf einzugehen. Ausgestattet mit einem PCIe x16-Steckplatz bietet der Tiny PC die Vielseitigkeit, um Hochleistungsaufgaben zu bewältigen, von professionellen Workloads bis hin zu fortschrittlichen Grafikanwendungen.
Sein externes <150W DC-Desktop-Netzteil sorgt für zuverlässige Energieeffizienz, und das unkomplizierte Design umfasst einen praktischen USB 2.0-Anschluss an der Vorderseite für einfache Konnektivität. Der Tiny PC wurde für den Einsatz auf kleinstem Raum entwickelt und eignet sich perfekt für kleine Büros, Heimarbeitsplätze oder sogar Unterhaltungssysteme. Klein in der Größe, aber groß in der Wirkung – der Tiny PC ist die perfekte Mischung aus Innovation und Effizienz.
Gehäusespezifikation
- Größe (BxTxH): 215x217x80mm
- Gewicht: 6 KG
- Hot Swap HDD Bay: Not available with this case
- Netzteil: External <150W DC Desktop Adapter
- PCIE Slots: 1x PCIe x16

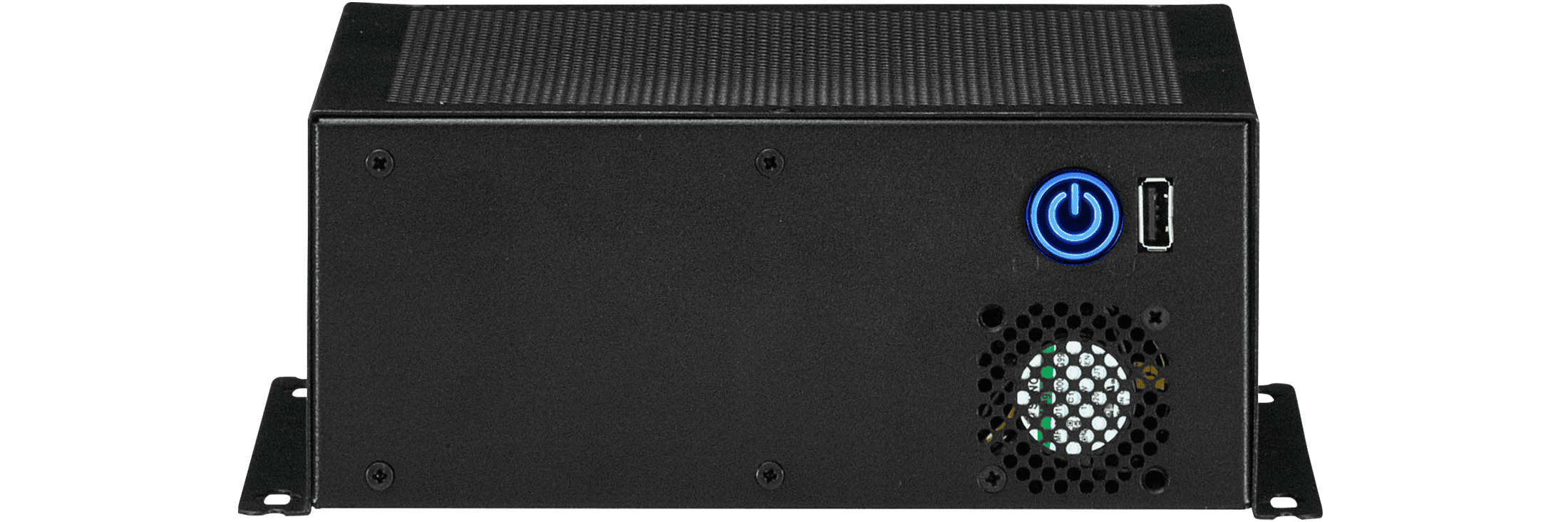

- Front USB: 1x USB2.0
FAQs
Bei konkreten Fragen erreichen Sie uns telefonisch unter +49 (0)6187 290150.
NUC Environmental Specifications
- Ambient Operating 0°C to +50°C (Local ambient temperature inside the chassis) * Processor performance may automatically decrease when the system operates in the top 5 °C of the ambient operating temperature ranges above.
- Sustained Storage Limits (i.e. warehouse):-20°C to +40°C
- Short Duration Limits (i.e. shipping): -40°C to +60°C
If the external ambient temperature exceeds 40°C, further thermal testing is required to ensure components do not exceed their maximum operating temperature.
Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of
the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.
Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum
operating temperature specified. It is recommended that the board temperature be at least room temperature
before attempting to power on the board. The operating and non-operating environment must avoid condensing
humidity.
