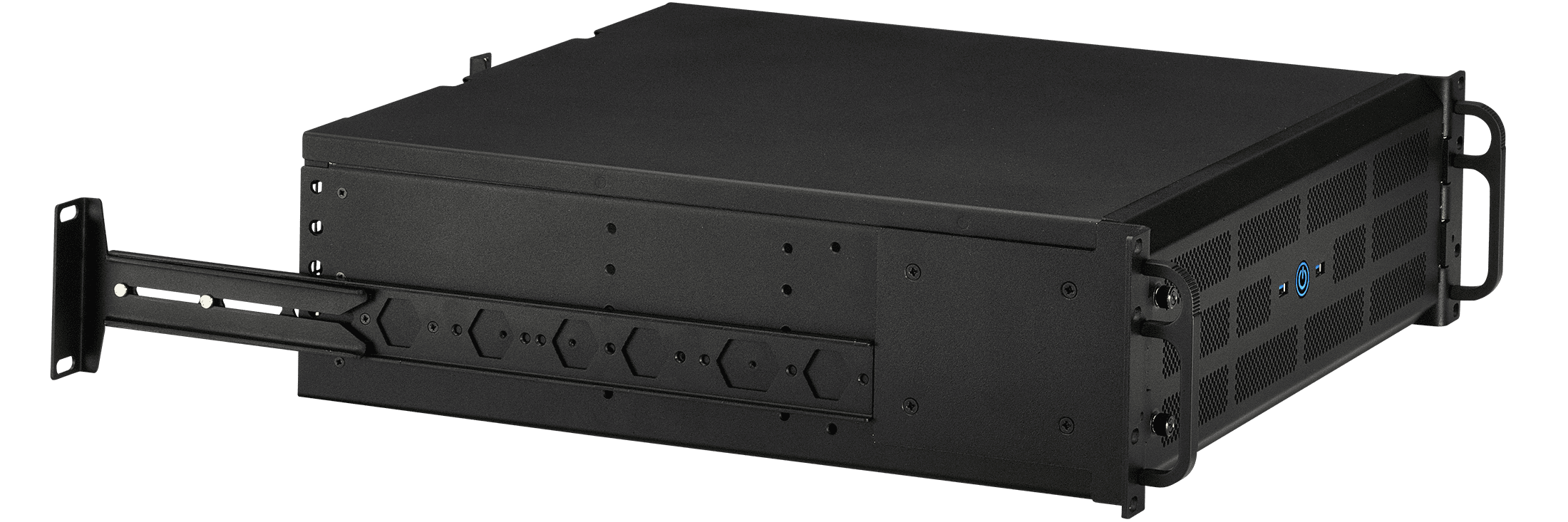

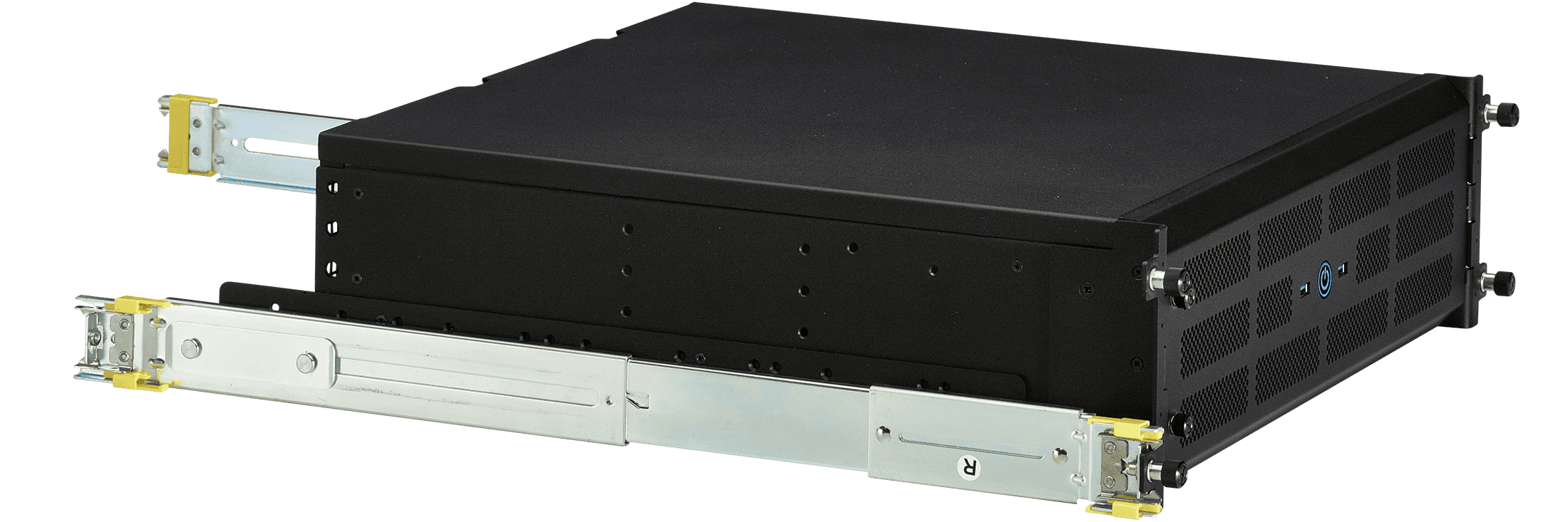

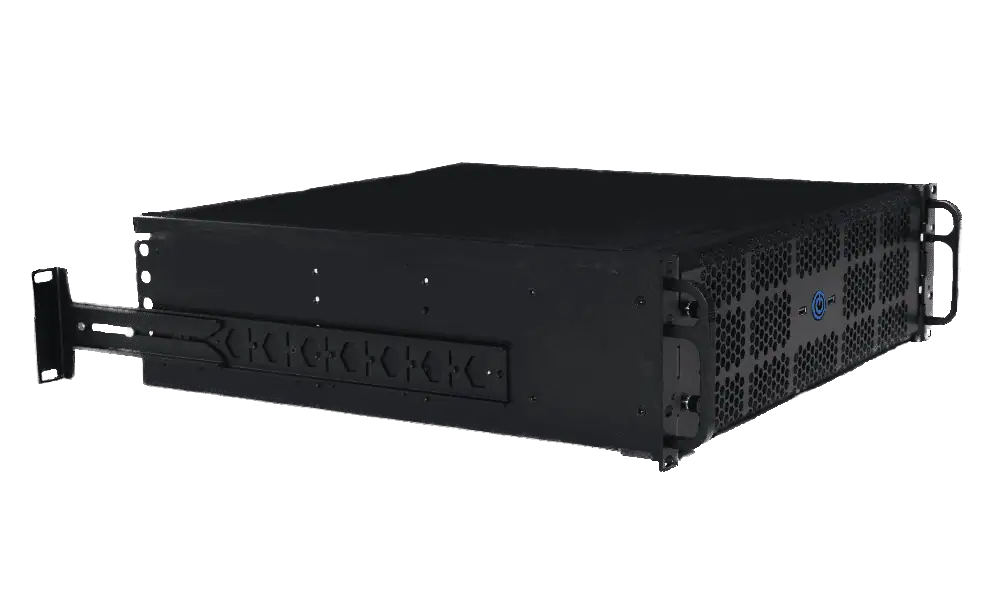

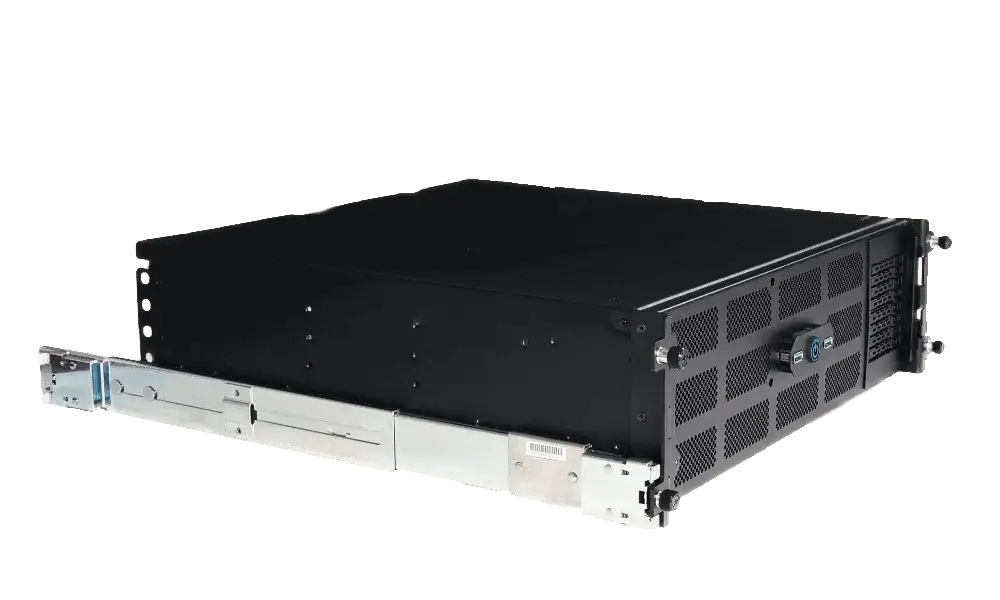

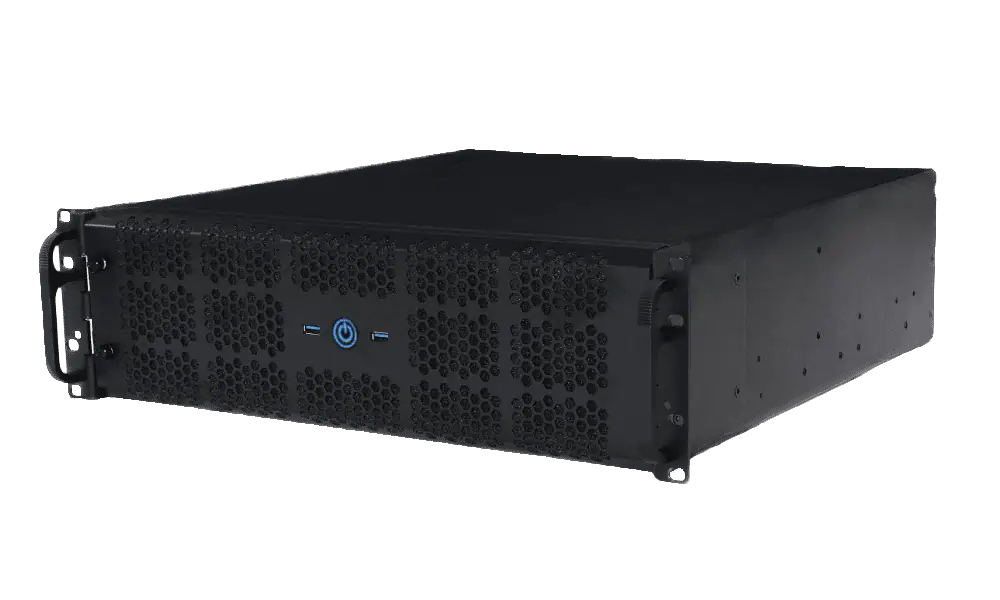

3U PC

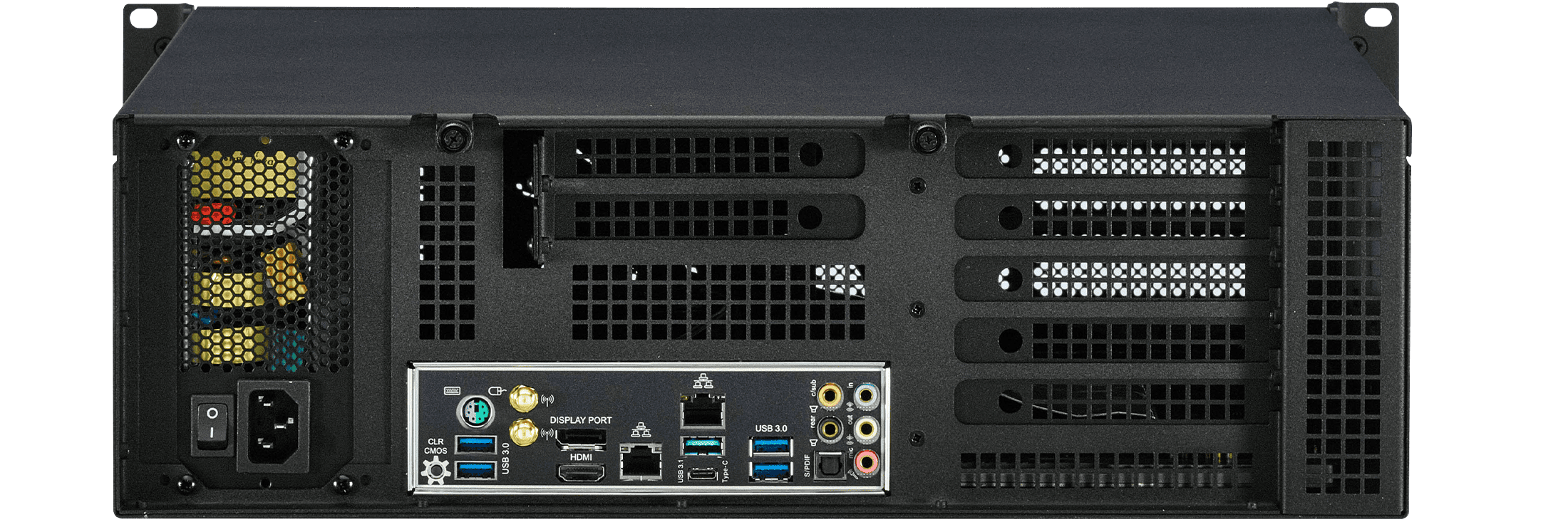

Der 3U-PC wurde im Hinblick auf die PCI-Express-Erweiterung entwickelt. Der 3U PC ist mit horizontalen oder vertikalen PCIe-Slots erhältlich, je nach Einsatzgebiet. Dadurch bietet sich eine Vielzahl von verschiedenen Optionen für die Installation mehrerer PCIe-Karten. Die um 90 Grad gedrehte horizontale Variante hat den Vorteil, dass zwei Consumer GFX Card mit Strom-Steckverbindern auf der Oberseite verwendet werden können. Die vertikale Ausrichtung ermöglicht den Einbau von drei Professional Quadro/AMD GFX-Karten.

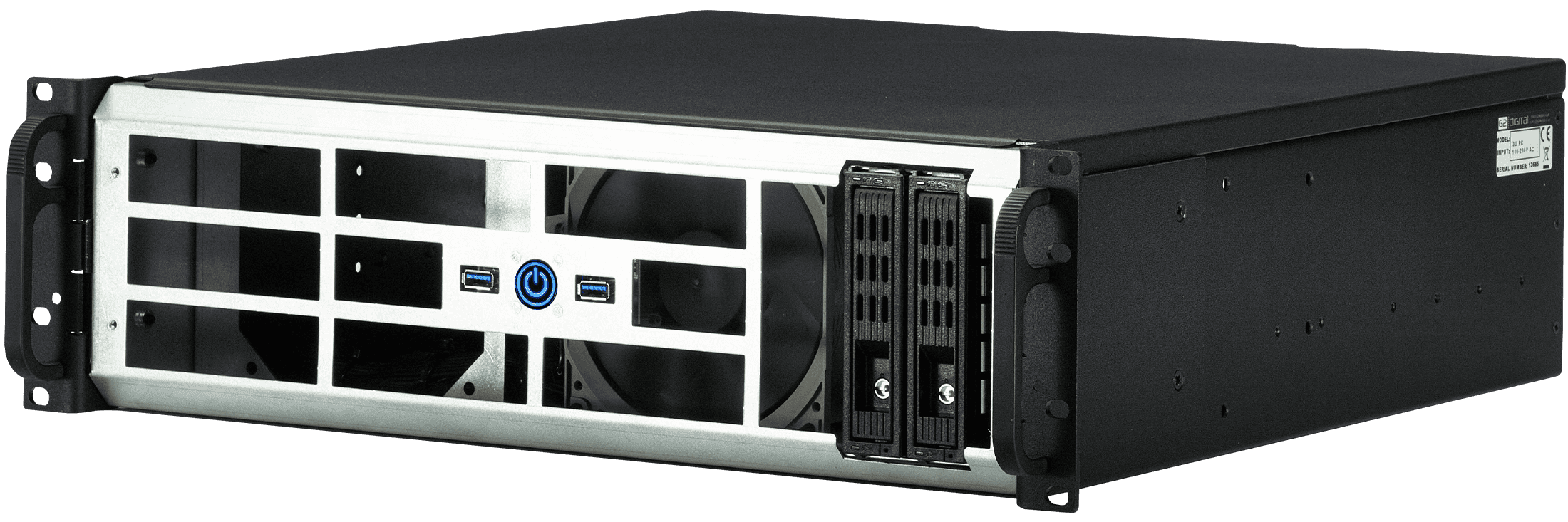

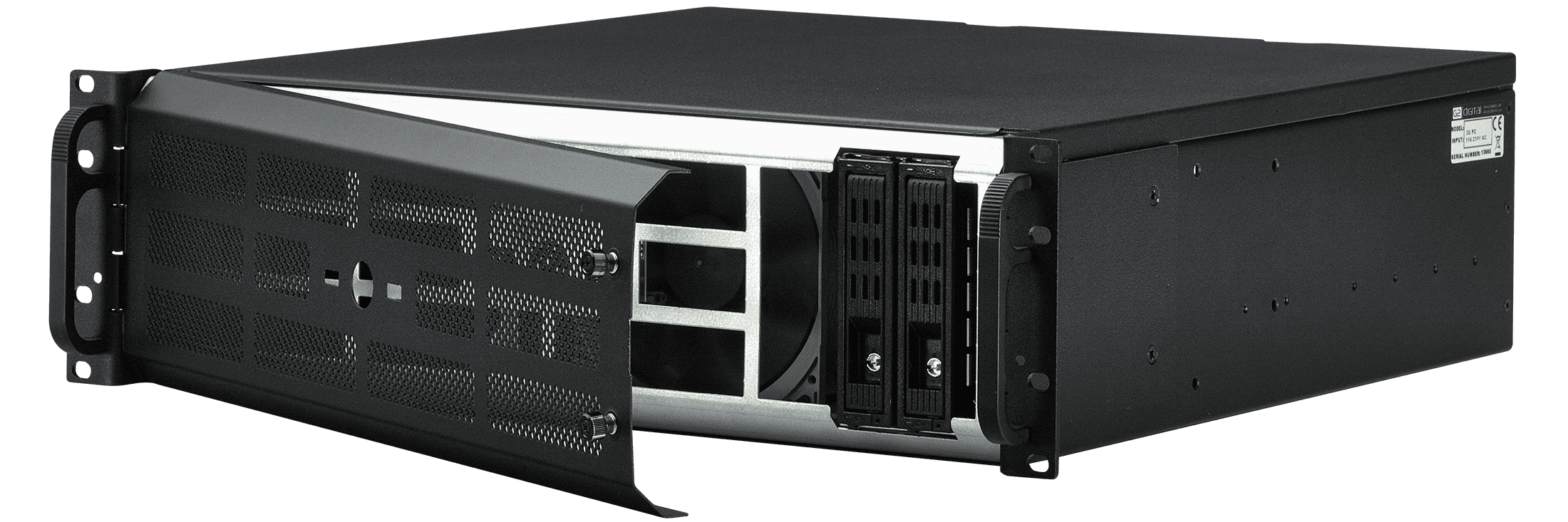

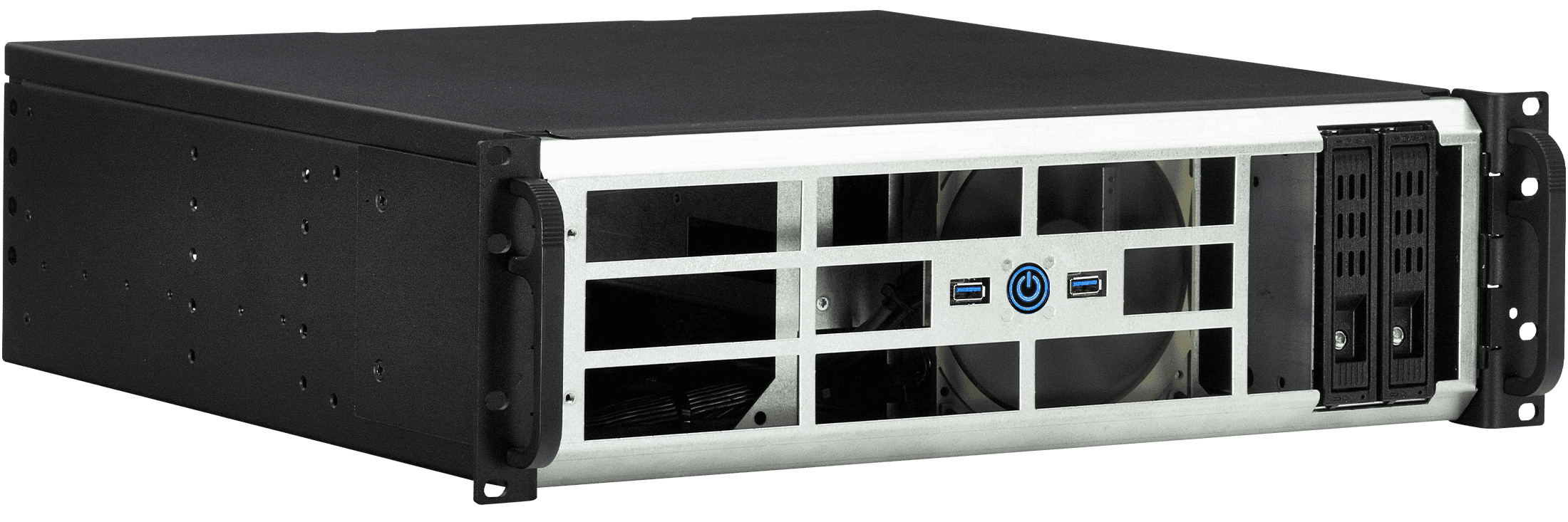

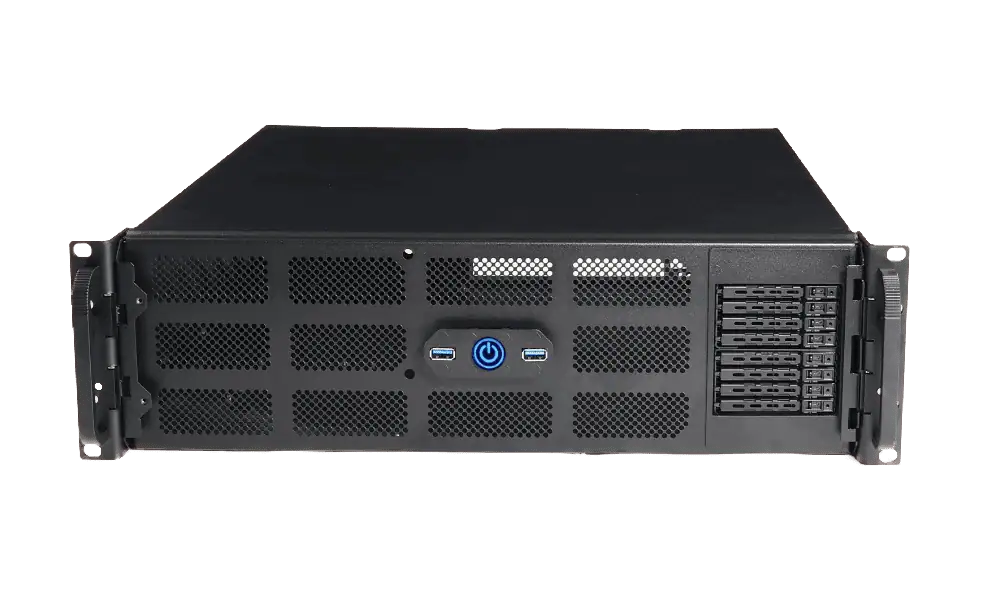

2x 3,5" Hot-Swap-fähige (abschließbare) SSD/HDD-Schächte - oder bis zu 6x 2,5" Schächte
Es sind bis zu 7x PCIe x16 Slots verfügbar (bestimmte Motherboards).
Ultraflache DVD/Blu-ray-Laufwerksoption

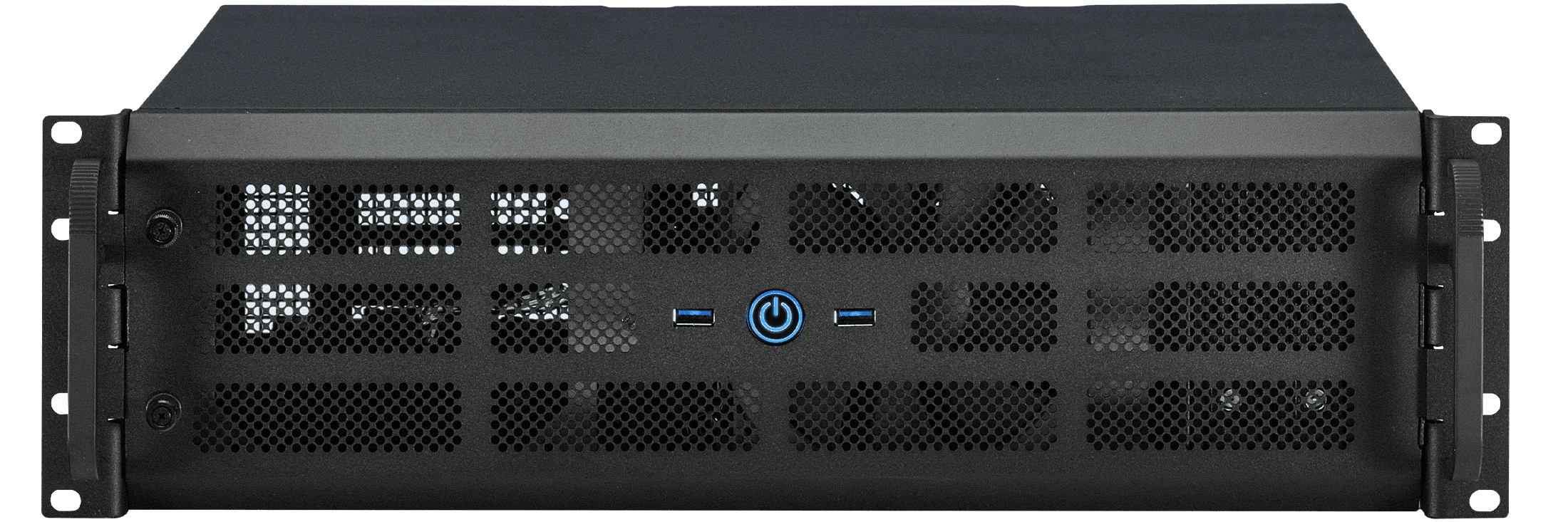

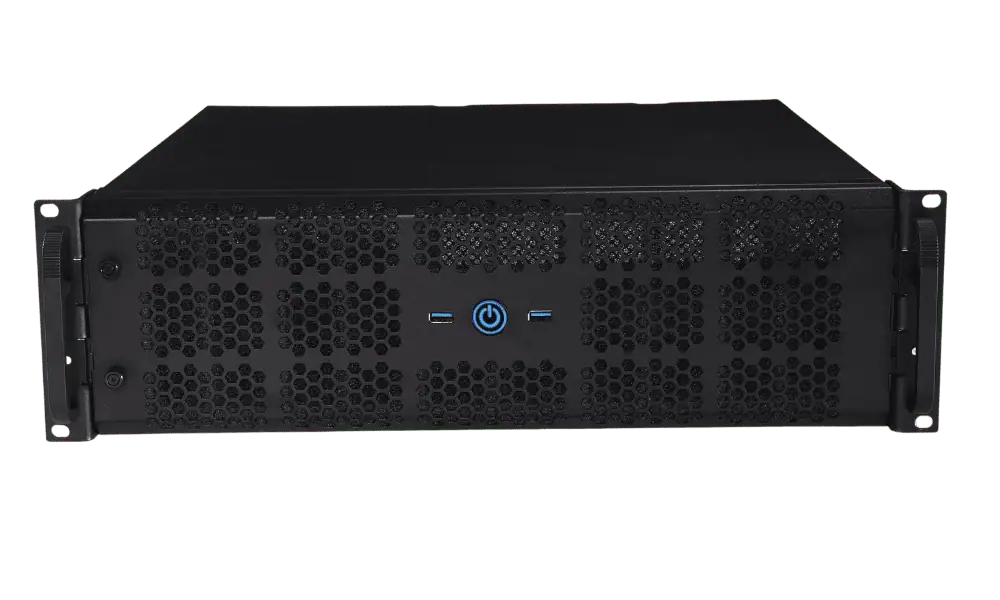

2x frontseitig angebrachte USB3.0-Anschlüsse - Standard bei allen Modellen.
bei Server-Motherboards alle mit IPMI-Verwaltungsport

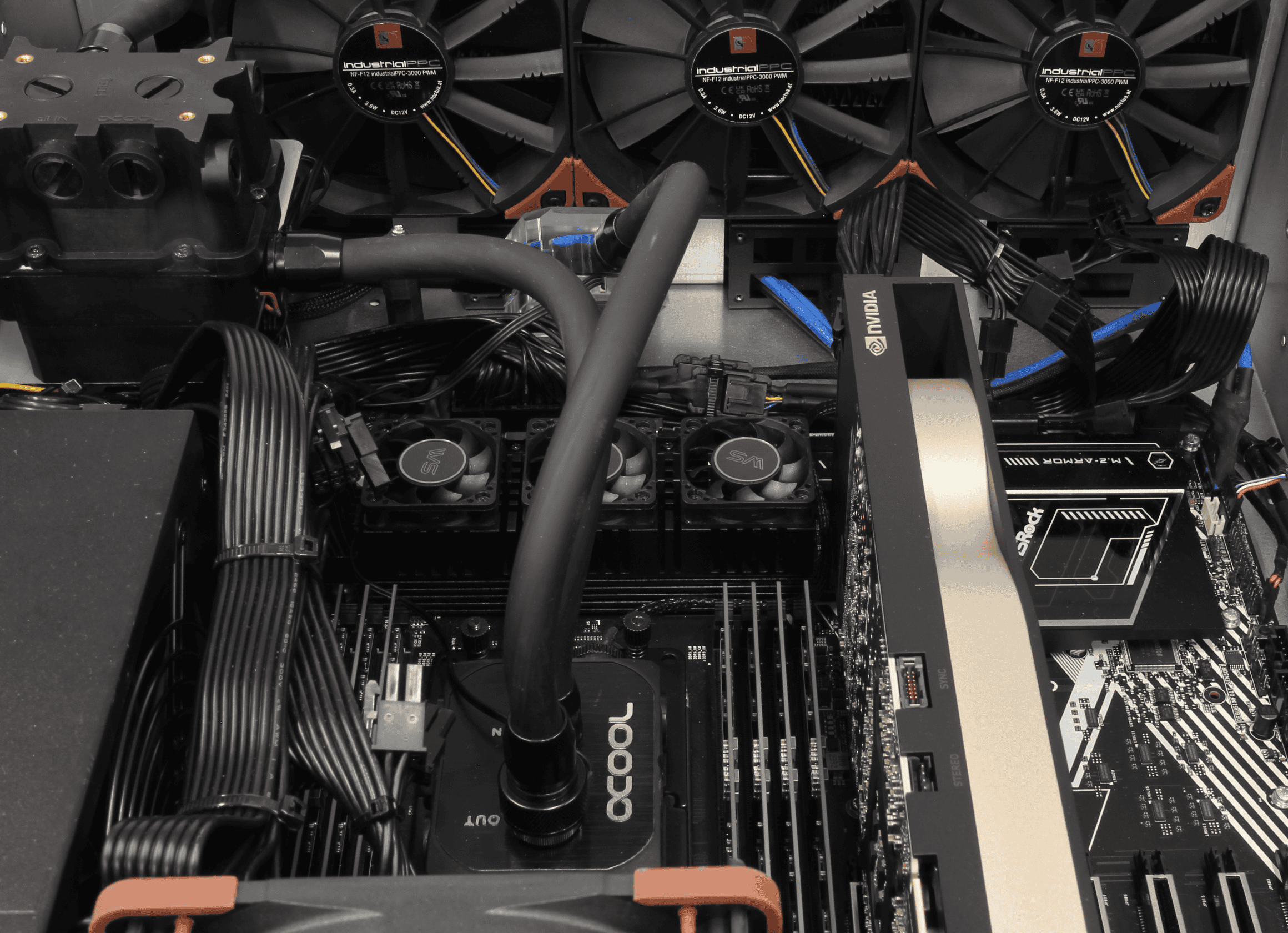

Die großen internen Kühlventilatoren sind zur Geräuschreduzierung gummigelagert.

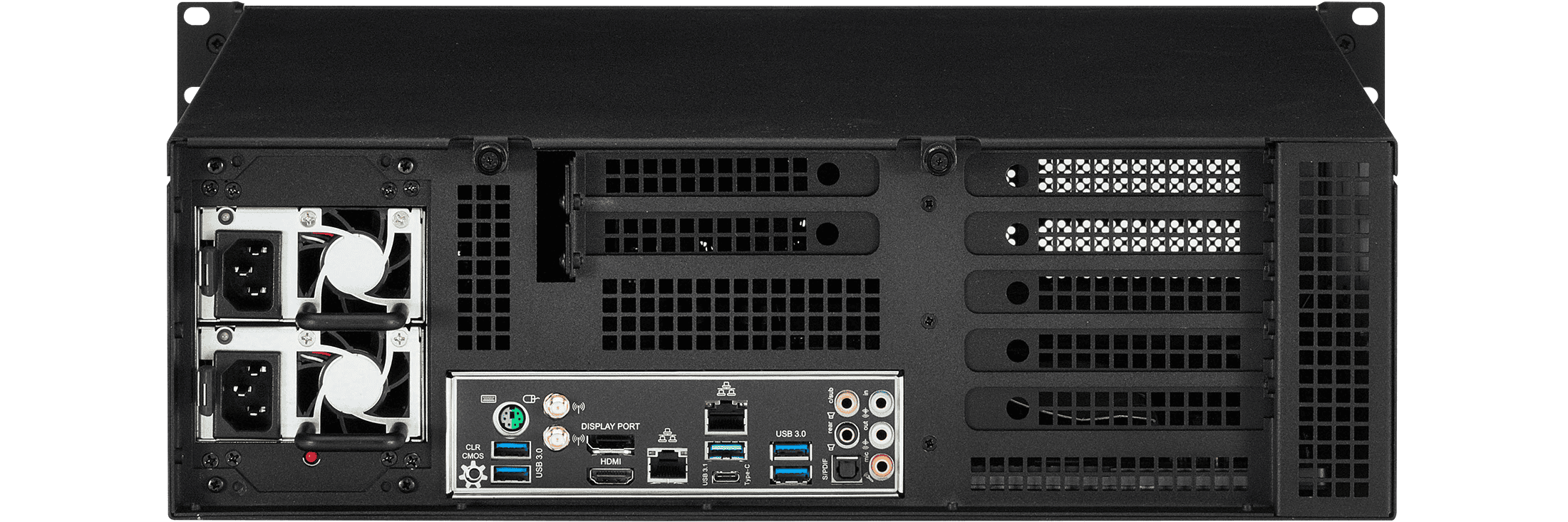

800W Redundantes Netzteil optional
Werkzeugloser, schnell abnehmbarer Deckel

Front USB: 2x USB 3.0
Gewicht: 11KG
Größe: 448(B)x457(T)x133(H)mm
Hard Disk Rahmen: 2x 3.5" oder 6x 2.5"
Lead Time: 5 Working Days
Netzteil: 600W (single)/800W (Redundant) 110-230VAC
optisches Laufwerk: Slimline DVD/Blu-Ray

Alle Modelle ansehen

Entry Level
Einfache kostengünstige, Computer Einstiegs. Wo RAID-Unterstützung und Dual-NIC-Ports sind nicht erforderlich.
Workstation
Entwickelt für schwere und ständig im Einsatz. Angebote RAID-Unterstützung, Dual-Netzwerk-Ports und optional WLAN.
Performance

Leistungsstarke X299 und C422 Chipsätze kompatibel mit i7, i9 und Xeon CPUs der W-Serie. Seit Kurzem sind auch starke AMD Ryzen 7 und Threadripper verfügbar, Ultra M.2 SSD-Steckplätze und mehrere PCI Express Gen3 Steckplätze für SLI.

Industrial

Entwickelt für langlebige Anwendungen, bei denen Hardwareänderungen nur selten auftreten. Ideal für die Wartung von Legacy-Software dank Komponenten, die ältere Software wie z.B. XP Professional unterstützen.

Server
Brandneue Produkte der Serverklasse für die Verwendung mit Windows-Desktop- und Server-Betriebssystemen. Auch mit einer IPMI-Management-Schnittstelle für die Fernverwaltung.


Entry Level	CV710L	CV99KL	CH710L	CV910KL	CH99KL	CH910KL
Preis	€ 1,237.56 zzgl. ges. MwSt.	€ 1,319.41 zzgl. ges. MwSt.	€ 1,412.27 zzgl. ges. MwSt.	€ 1,456.89 zzgl. ges. MwSt.	€ 1,497.27 zzgl. ges. MwSt.	€ 1,629.19 zzgl. ges. MwSt.
CPU	i7-10700 2.9GHz 8C/16T	i9-9900K 3.6GHz 8C/16T	i7-10700 2.9GHz 8C/16T	i9-10900K 3.7GHz 10C/20T	i9-9900K 3.6GHz 8C/16T	i9-10900K 3.7GHz 10C/20T
RAM	8GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 2666MHz DIMM 1.2V	8GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 2666MHz DIMM 1.2V	8GB Crucial DDR4 3200MHz DIMM 1.2V
HDD	250GB M.2 NVmE Crucial P5 SSD	250GB 2.5 SATAIII Crucial MX500 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD
DVD	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available
OS	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available
Grafik Ausgang	UHD630 with DVI-D, HDMI, DisplayPort Output(s)	UHD630 with VGA, DVI-D, HDMI Output(s)	UHD630 with DVI-D, HDMI, DisplayPort Output(s)	UHD630 with DVI-D, HDMI, DisplayPort Output(s)	UHD630 with VGA, DVI-D, HDMI Output(s)	UHD630 with DVI-D, HDMI, DisplayPort Output(s)
LAN	Intel i219V (1Gb/s)	Intel i219V (1Gb/s)	Intel i219V (1Gb/s)	Intel i219V (1Gb/s)	Intel i219V (1Gb/s)	Intel i219V (1Gb/s)
Serial Ports	1 Optional Ports Available	1 Optional Ports Available	1 Optional Ports Available	1 Optional Ports Available	1 Optional Ports Available	1 Optional Ports Available
Expansion Slot 1	PCIe x16 (Full Height)(x16 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16 Lanes, Gen 3.0)
Expansion Slot 2	PCIe x1 (Full Height)(x4 Lanes, Gen 3.0)	PCIe x1 (Full Height)(x4 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x4 Lanes, Gen 3.0)	PCIe x1 (Full Height)(x4 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x4 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x4 Lanes, Gen 3.0)
Expansion Slot 3	PCIe x1 (Full Height)(x1 Lanes, Gen 3.0)	PCIe x1 (Full Height)(x1 Lanes, Gen 3.0)	Not Quoted - Option Available	PCIe x1 (Full Height)(x1 Lanes, Gen 3.0)	Not Quoted - Option Available	Not Quoted - Option Available
Vergleichen
Spezifikation


Workstation	WV710K	WV910K	WH710K	WH910K
Preis	€ 1,682.23 zzgl. ges. MwSt.	€ 1,845.44 zzgl. ges. MwSt.	€ 1,863.84 zzgl. ges. MwSt.	€ 2,061.72 zzgl. ges. MwSt.
CPU	i7-10700K 3.8GHz 8C/16T	i9-10900K 3.7GHz 10C/20T	i7-10700K 3.8GHz 8C/16T	i9-10900K 3.7GHz 10C/20T
RAM	8GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 3200MHz DIMM 1.2V
HDD	250GB 2.5 SATAIII Crucial MX500 SSD	250GB M.2 NVmE Samsung 970 Evo Plus SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Samsung 970 Evo Plus SSD
DVD	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available
OS	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available
Grafik Ausgang	UHD630 with HDMI , DisplayPort Output(s)	UHD630 with HDMI , DisplayPort Output(s)	UHD630 with HDMI , DisplayPort Output(s)	UHD630 with HDMI , DisplayPort Output(s)
LAN	Intel i219V (1Gb/s) & Realtek Dragon RTL8125BG (2.5Gbps)	Intel i219V (1Gb/s) & Realtek Dragon RTL8125BG (2.5Gbps)	Intel i219V (1Gb/s) & Realtek Dragon RTL8125BG (2.5Gbps)	Intel i219V (1Gb/s) & Realtek Dragon RTL8125BG (2.5Gbps)
Serial Ports	None	None	None	None
Expansion Slot 1	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16/x8 Lanes, Gen 3.0)
Expansion Slot 2	PCIe x16 (Full Height)(x8 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x8 Lanes, Gen 3.0)
Expansion Slot 3	PCIe x16 (Full Height)(x4 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x4 Lanes, Gen 3.0)	Not Quoted - Option Available	Not Quoted - Option Available
Vergleichen
Spezifikation


Performance	PV710	PH710	RV9595X	RH9595X	PH98	RTV36X	RTH36X	RTV37X	RTH37X	RTV39X	RTH39X
Preis	€ 2,122.32 zzgl. ges. MwSt.	€ 2,269.91 zzgl. ges. MwSt.	€ 2,326.93 zzgl. ges. MwSt.	€ 2,486.08 zzgl. ges. MwSt.	€ 2,568.39 zzgl. ges. MwSt.	€ 3,234.56 zzgl. ges. MwSt.	€ 3,385.86 zzgl. ges. MwSt.	€ 3,820.94 zzgl. ges. MwSt.	€ 3,972.23 zzgl. ges. MwSt.	€ 6,134.30 zzgl. ges. MwSt.	€ 6,285.59 zzgl. ges. MwSt.
CPU	i9-10900X 10C/20T	i9-10900X 10C/20T	3950X 3.4GHz 16C/32T	3950X 3.4GHz 16C/32T	W-2245 8C/16T	3960X 24C/48T	3960X 24C/48T	3970X 32C/64T	3970X 32C/64T	3990X 64C/128T	3990X 64C/128T
RAM	16GB Crucial DDR4 3200MHz DIMM 1.2V	16GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 3200MHz DIMM 1.2V	8GB Crucial DDR4 2666MHz RDIMM 1.2V ECC*	16GB Crucial DDR4 3200MHz DIMM 1.2V	16GB Crucial DDR4 3200MHz DIMM 1.2V	16GB Crucial DDR4 3200MHz DIMM 1.2V	16GB Crucial DDR4 3200MHz DIMM 1.2V	16GB Crucial DDR4 3200MHz DIMM 1.2V	16GB Crucial DDR4 3200MHz DIMM 1.2V
HDD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB 2.5 SATAIII Crucial MX500 SSD	250GB M.2 NVmE Samsung 970 Evo Plus SSD	250GB M.2 NVmE Samsung 970 Evo Plus SSD	250GB M.2 NVmE Samsung 970 Evo Plus SSD	250GB M.2 NVmE Samsung 970 Evo Plus SSD	250GB M.2 NVmE Samsung 970 Evo Plus SSD	250GB M.2 NVmE Samsung 970 Evo Plus SSD
DVD	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available
OS	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available
Grafik Ausgang	PNY P400 2GB with 3xMiniDP	PNY P400 2GB with 3xMiniDP	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)	None	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)
LAN	Intel i219V (1Gb/s) & Intel I211 (1Gb/s)	Intel i219V (1Gb/s) & Intel I211 (1Gb/s)	2x Intel X550-AT2 (10Gb/s) & 2x Intel i210 (1Gb/s) & IPMI ASPEED AST2500	2x Intel X550-AT2 (10Gb/s) & 2x Intel i210 (1Gb/s) & IPMI ASPEED AST2500	2x Intel i210-AT (1Gb/s)	2x Intel X710-AT2 (10Gb/s) & 2x Intel i225 (2.5Gbps) & IPMI ASPEED AST2500	2x Intel X710-AT2 (10Gb/s) & 2x Intel i225 (2.5Gbps) & IPMI ASPEED AST2500	2x Intel X710-AT2 (10Gb/s) & 2x Intel i225 (2.5Gbps) & IPMI ASPEED AST2500	2x Intel X710-AT2 (10Gb/s) & 2x Intel i225 (2.5Gbps) & IPMI ASPEED AST2500	2x Intel X710-AT2 (10Gb/s) & 2x Intel i225 (2.5Gbps) & IPMI ASPEED AST2500	2x Intel X710-AT2 (10Gb/s) & 2x Intel i225 (2.5Gbps) & IPMI ASPEED AST2500
Serial Ports	1 Optional Ports Available	1 Optional Ports Available	1	1	1 Optional Ports Available	1	1	1	1	1	1
Expansion Slot 1	Used by Graphics Card	Used by Graphics Card	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 4.0)	PCIe x16 (Full Height) 4(x16/x8 Lanes, Gen 4.0)	PCIe x16 (Full Height) 4(x16 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height) 4(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height) 4(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height) 4(x16 Lanes, Gen 4.0)
Expansion Slot 2	PCIe x16 (Full Height)(x16 Lanes, Gen 3.0)	PCIe x16 (Full Height) 3(x16 Lanes, Gen 3.0)	PCIe x1 (Full Height)(x8 Lanes, Gen 4.0)	PCIe x16 (Full Height) 3(x8 Lanes, Gen 4.0)	PCIe x16 (Full Height) 4(x16 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height) 3(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height) 3(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	PCIe x16 (Full Height) 3(x16 Lanes, Gen 4.0)
Expansion Slot 3	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	Not Quoted - Option Available	PCIe x16 (Full Height)(x1 Lanes, Gen 4.0)	Not Quoted - Option Available	Not Quoted - Option Available	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	Not Quoted - Option Available	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	Not Quoted - Option Available	PCIe x16 (Full Height)(x16 Lanes, Gen 4.0)	Not Quoted - Option Available
Vergleichen
Spezifikation


Industrial	iV99K	iH99K	iV710	iH710	iV910K	iH910K
Preis	€ 1,418.97 zzgl. ges. MwSt.	€ 1,590.05 zzgl. ges. MwSt.	€ 1,656.06 zzgl. ges. MwSt.	€ 1,842.22 zzgl. ges. MwSt.	€ 1,878.14 zzgl. ges. MwSt.	€ 2,079.19 zzgl. ges. MwSt.
CPU	i9-9900K 3.6GHz 8C/16T	i9-9900K 3.6GHz 8C/16T	i7-10700 2.9GHz 8C/16T	i7-10700 2.9GHz 8C/16T	i9-10900K 3.7GHz 10C/20T	i9-10900K 3.7GHz 10C/20T
RAM	8GB Crucial DDR4 2666MHz DIMM 1.2V	8GB Crucial DDR4 2666MHz DIMM 1.2V	8GB Samsung DDR4 2933MHz DIMM 1.2V	8GB Samsung DDR4 2933MHz DIMM 1.2V	16GB Crucial DDR4 3200MHz DIMM 1.2V	16GB Crucial DDR4 3200MHz DIMM 1.2V
HDD	250GB 2.5 SATAIII Crucial MX500 SSD	250GB 2.5 SATAIII Crucial MX500 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD	250GB M.2 NVmE Crucial P5 SSD
DVD	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available
OS	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available
Grafik Ausgang	UHD630 with VGA , HDMI , DisplayPort Output(s)	UHD630 with VGA , HDMI , DisplayPort Output(s)	UHD630 with HDMI , 2x DisplayPort Output(s)	UHD630 with HDMI , 2x DisplayPort Output(s)	UHD630 with HDMI , 2x DisplayPort Output(s)	UHD630 with HDMI , 2x DisplayPort Output(s)
LAN	Intel i210 (1Gb/s) & Intel i219LM (1Gb/s)	Intel i210 (1Gb/s) & Intel i219LM (1Gb/s)	Intel i225LM (2.5Gb/s) & Realtek RTL8117 (1Gb/s)	Intel i225LM (2.5Gb/s) & Realtek RTL8117 (1Gb/s)	Intel i225LM (2.5Gb/s) & Realtek RTL8117 (1Gb/s)	Intel i225LM (2.5Gb/s) & Realtek RTL8117 (1Gb/s)
Serial Ports	1	1	1 (1 Optional Ports Available)	1 (1 Optional Ports Available)	1 (1 Optional Ports Available)	1 (1 Optional Ports Available)
Expansion Slot 1	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16/x8 Lanes, Gen 3.0)
Expansion Slot 2	PCIe x8 (Full Height)(x8/x4 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x8/x4 Lanes, Gen 3.0)	PCIe x8 (Full Height)(x0/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 6(x0/x8 Lanes, Gen 3.0)	PCIe x8 (Full Height)(x0/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 6(x0/x8 Lanes, Gen 3.0)
Expansion Slot 3	PCIe x4 (Full Height)(x4 Lanes, Gen 3.0)	Not Quoted - Option Available	PCIe x4 (Full Height)(x4 Lanes, Gen 3.0)	Not Quoted - Option Available	PCIe x4 (Full Height)(x4 Lanes, Gen 3.0)	Not Quoted - Option Available
Vergleichen
Spezifikation


Server	SV565	SH565	SV643	SVE51
Preis	€ 1,773.56 zzgl. ges. MwSt.	€ 1,948.27 zzgl. ges. MwSt.	€ 3,579.87 zzgl. ges. MwSt.	€ 4,231.54 zzgl. ges. MwSt.
CPU	W-1290P 3.7GHz 10C/20T	W-1290P 3.7GHz 10C/20T	5220 18C/36T	7551P 32C/64T
RAM	16GB Crucial DDR4 2666MHz RDIMM 1.2V ECC*	16GB Crucial DDR4 2666MHz RDIMM 1.2V ECC*	16GB Crucial DDR4 2666MHz RDIMM 1.2V ECC*	16GB Crucial DDR4 2666MHz RDIMM 1.2V ECC*
HDD	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	512GB M.2 NVmE Samsung 970 Pro SSD
DVD	Not quoted options available	Not quoted options available	Not quoted options available	Not quoted options available
OS	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available	Not Quoted - Options Available
Grafik Ausgang	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)	ASPEED AST2500 with VGA Output(s)
LAN	2x Intel i210 (1Gb/s)	2x Intel i210 (1Gb/s)	4x Marvell 88E1543 (1Gb/s)	2x Intel X550 (10Gb/s)
Serial Ports	1 (1 Optional Ports Available)	1 (1 Optional Ports Available)	1	1
Expansion Slot 1	PCIe x1 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x16/x8 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x8 (Full Height)(x8 Lanes, Gen 3.0)
Expansion Slot 2	PCIe x16 (Full Height)(x8 Lanes, Gen 3.0)	PCIe x16 (Full Height) 4(x8 Lanes, Gen 3.0)	PCIe x8 (Full Height)(x8 Lanes, Gen 3.0)	PCIe x16 (Full Height)(x16 Lanes, Gen 3.0)
Expansion Slot 3	PCIe x8 (Full Height)(x1 Lanes, Gen 3.0)	Not available with this case	PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)	PCIe x8 (Full Height)(x8 Lanes, Gen 3.0)
Vergleichen
Spezifikation
