Leistung in Industriequalität mit einem kompakten, wandmontierbaren Design, das ihn zur idealen Lösung für Umgebungen mit begrenztem Platzangebot macht. Mit den Maßen von nur 297x196x58 mm passt dieses Kraftpaket unauffällig an Orte, an denen herkömmliche PCs keinen Platz finden.
Ausgestattet mit einem eingebauten internen Netzteil bietet der Pocket PC flexible Stromversorgungsoptionen und unterstützt 110-230VAC, 12-48VDC oder PoE++, um Ihren individuellen Betriebsanforderungen gerecht zu werden. Für moderne Konnektivität sorgt ein USB 3.0-Anschluss an der Vorderseite, der eine nahtlose Integration von wichtigem Zubehör ermöglicht. Obwohl das schlanke Profil weder einen Hot-Swap-Festplattenschacht noch PCIE-Steckplätze umfasst, ist es für eine unkomplizierte, zuverlässige Leistung in Umgebungen ausgelegt, in denen Effizienz und Langlebigkeit gefragt sind.
Ganz gleich, ob Sie industrielle Anwendungen, Steuersysteme oder kompakte Büroumgebungen verwalten, der Pocket PC verändert die Art und Weise, wie Sie Ihren digitalen Arbeitsbereich steuern – ohne Abstriche bei der Leistung oder Zuverlässigkeit.
Gehäusespezifikation
- Größe (BxTxH): 297x196x58mm
- Gewicht: 5 KG
- Hot Swap HDD Bay: Not available with this case
- Netzteil: Single 110-230VAC, 12-48VDC or PoE++
- PCIE Slots: Not available with this case

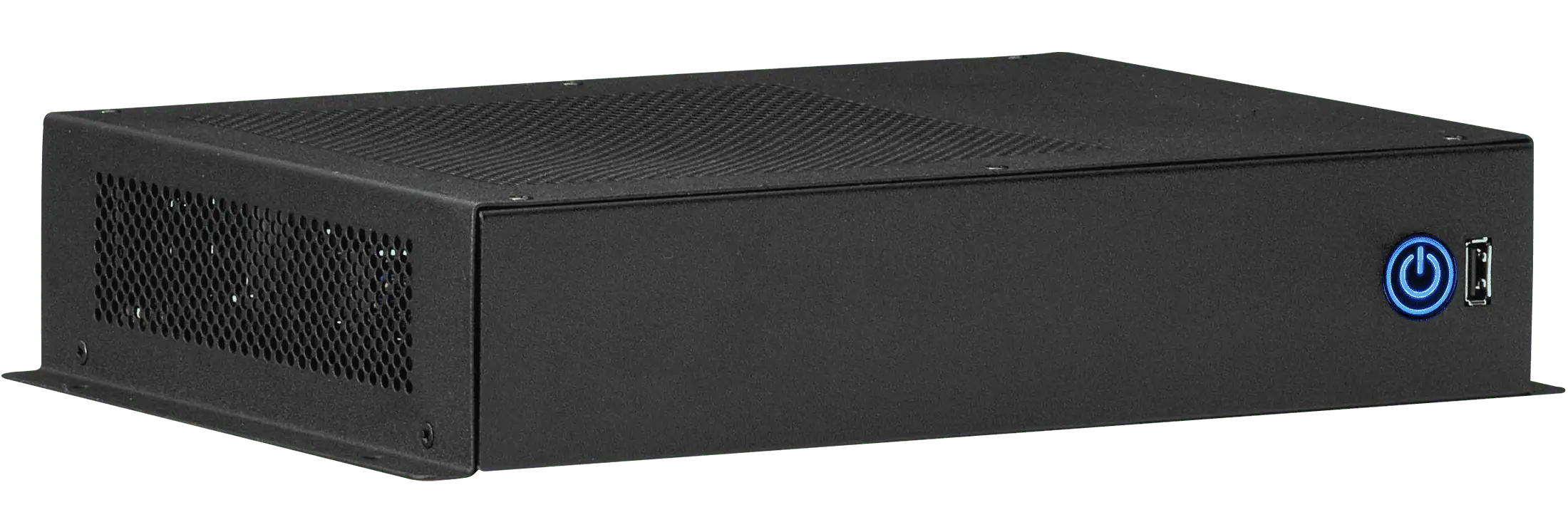

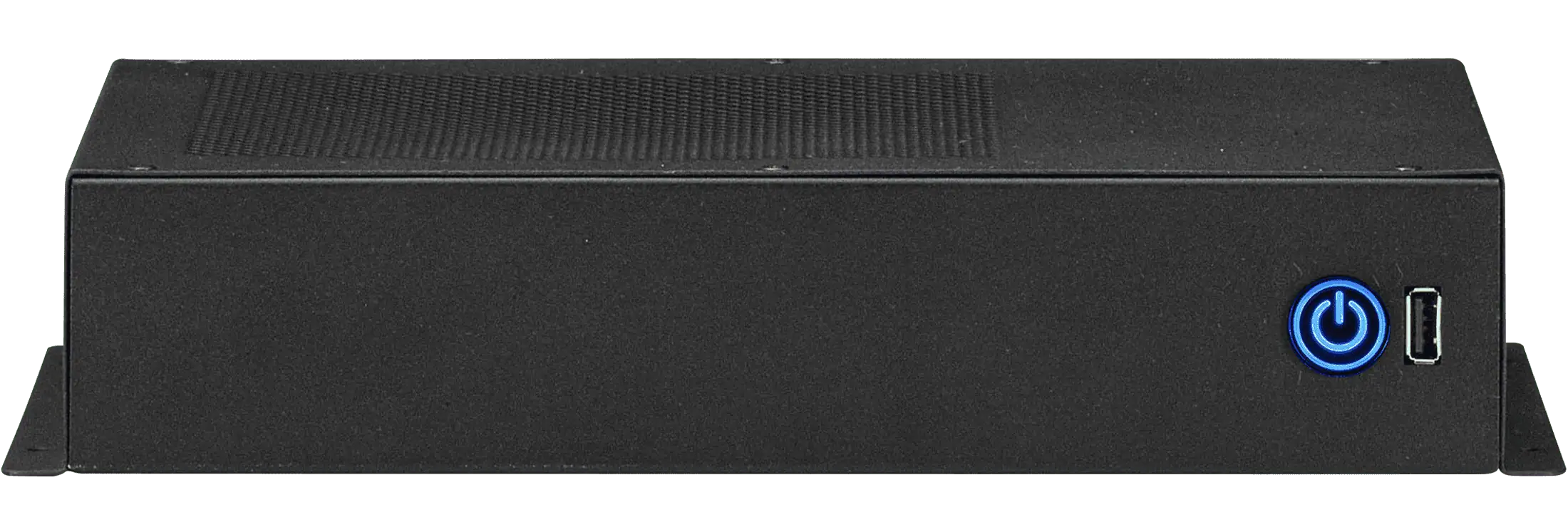

- Front USB: 1x USB3.0
FAQs
Bei konkreten Fragen erreichen Sie uns telefonisch unter +49 (0)6187 290150.
NUC Environmental Specifications
- Ambient Operating 0°C to +50°C (Local ambient temperature inside the chassis) * Processor performance may automatically decrease when the system operates in the top 5 °C of the ambient operating temperature ranges above.
- Sustained Storage Limits (i.e. warehouse):-20°C to +40°C
- Short Duration Limits (i.e. shipping): -40°C to +60°C
If the external ambient temperature exceeds 40°C, further thermal testing is required to ensure components do not exceed their maximum operating temperature.
Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of
the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.
Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum
operating temperature specified. It is recommended that the board temperature be at least room temperature
before attempting to power on the board. The operating and non-operating environment must avoid condensing
humidity.
