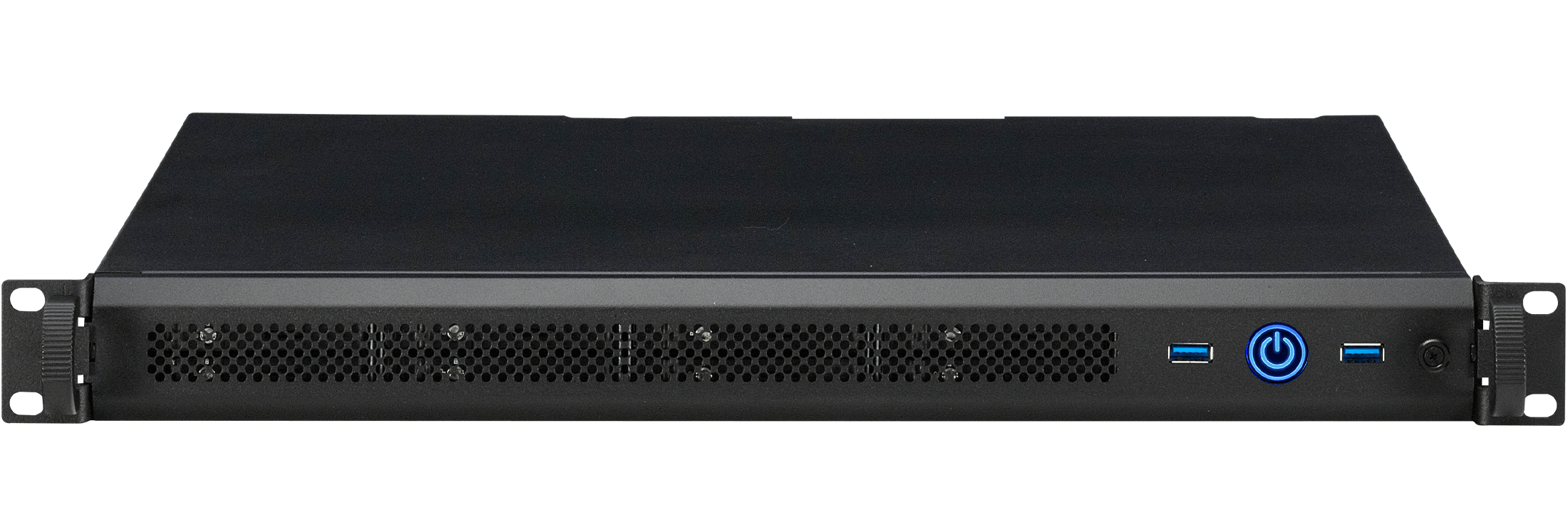

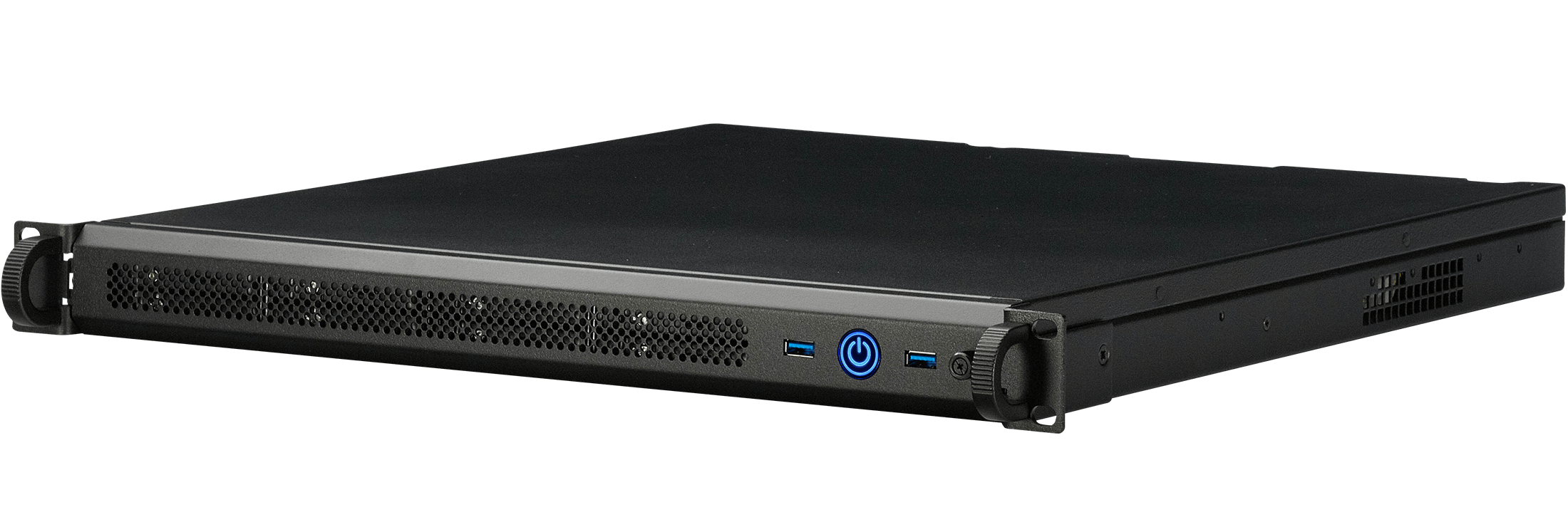

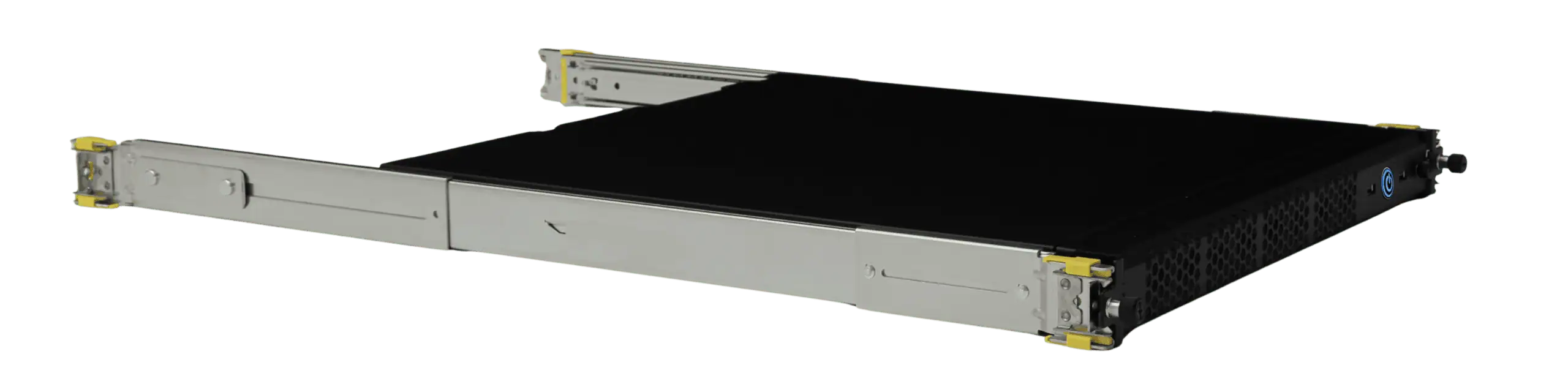

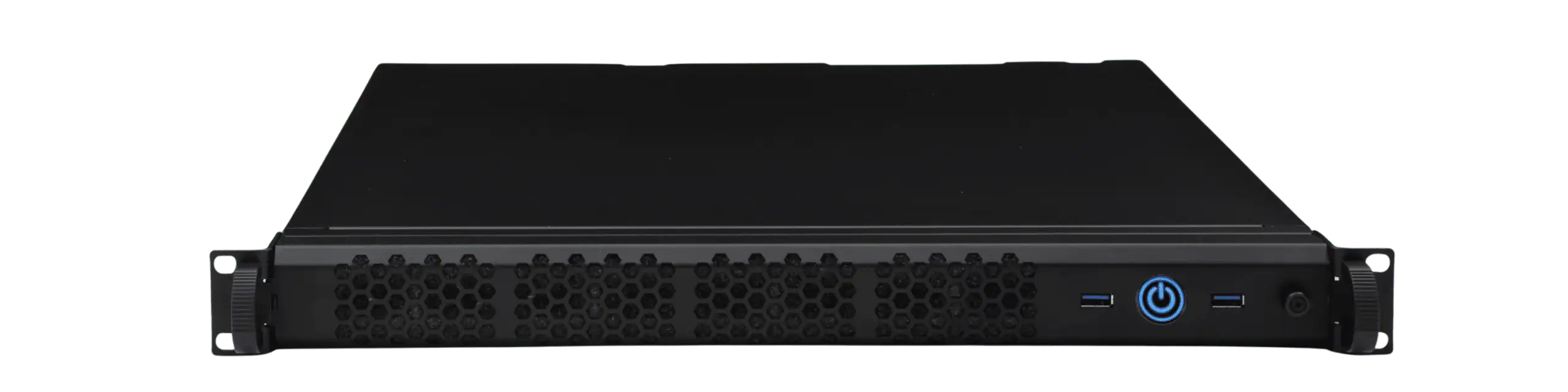

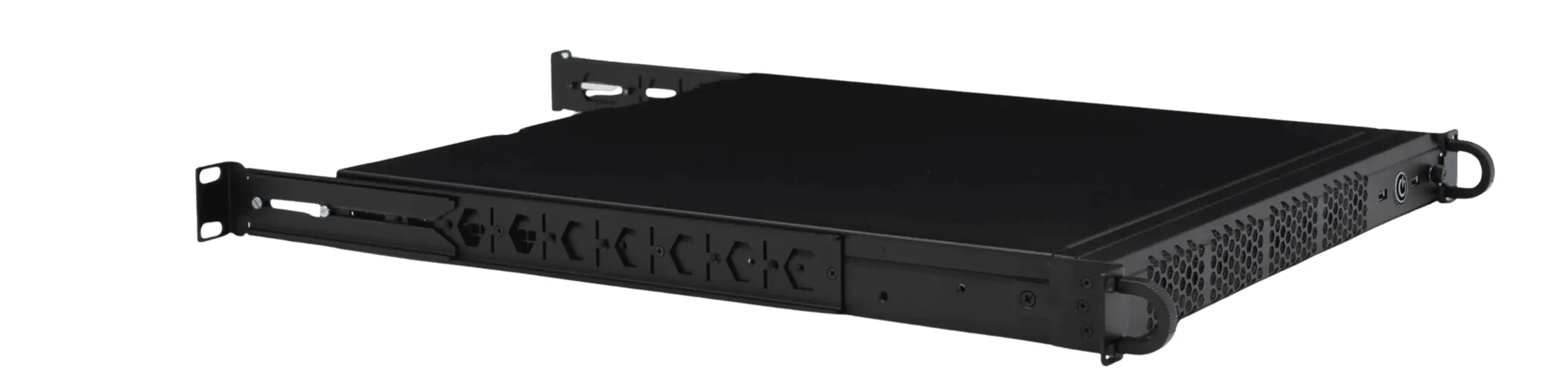

1U Plus

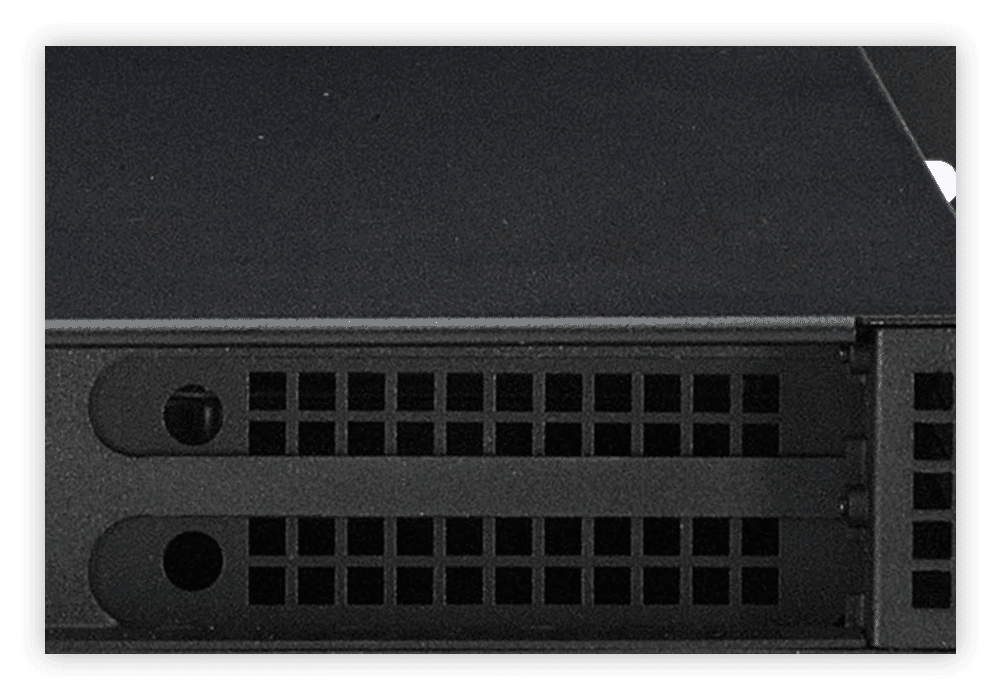

Dieses Gehäuse wurde für die Unterstützung etwas größerer Micro-ATX-Motherboards entwickelt und bietet eine überlegene Konfiguration mit zwei dedizierten PCIe-Steckplätzen. Im Gegensatz zur Aufteilung eines x16-Steckplatzes in zwei x8-Steckplätze gewährleistet diese Konfiguration die volle Leistung für Grafikkarten, die x16-Lanes benötigen. Gleichzeitig steht ein zusätzlicher PCIe-Steckplatz für einen Videoeingang oder eine RAID-Karte zur Verfügung – Flexibilität und Leistung in einem.
Mit seiner im Vergleich zu Standard-1U-Gehäusen tieferen Bauweise bietet dieses Modell mehr Hot-Swap-Einschübe, zusätzliche PCIe-Karten und dank der größeren mATX-Karten bis zu vier DIMMs. Das bedeutet mehr Speicherplatz, erweiterte Anpassungsmöglichkeiten und eine höhere RAM-Kapazität für eine bessere Leistung.
Wie bei allen unseren Produkten stehen Ihre Bedürfnisse im Vordergrund. Ganz gleich, ob Sie ein individuelles Branding oder maßgeschneiderte Modifikationen des Metalldesigns wünschen, unser Team hilft Ihnen gerne, die perfekte Lösung zu finden.
Gehäusespezifikation
- Größe (BxTxH): 425x480x44.4mm
- Gewicht: 12 KG

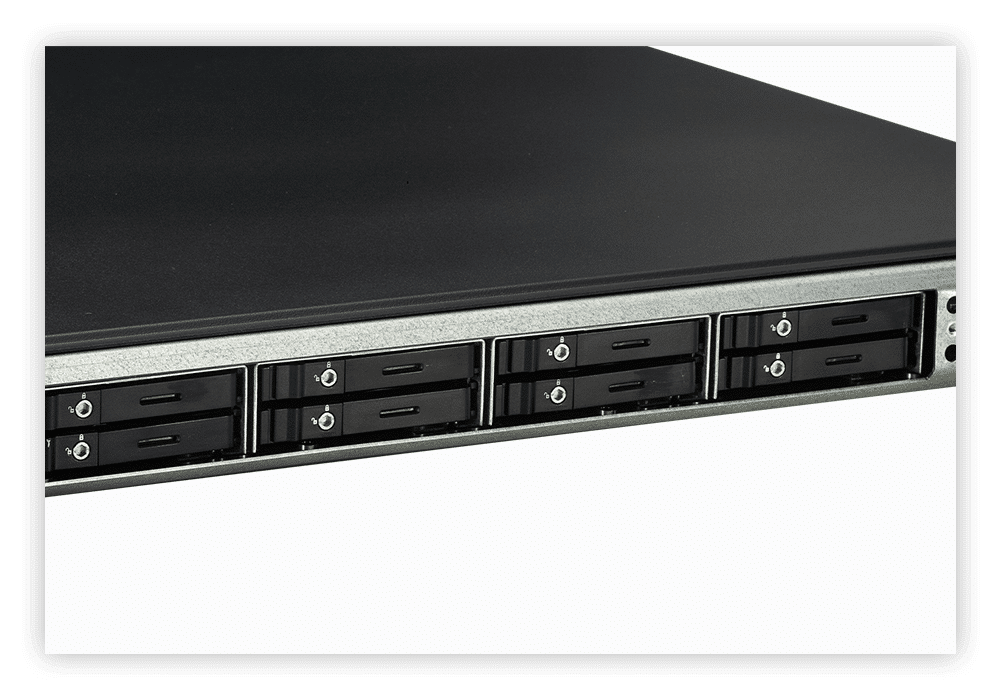

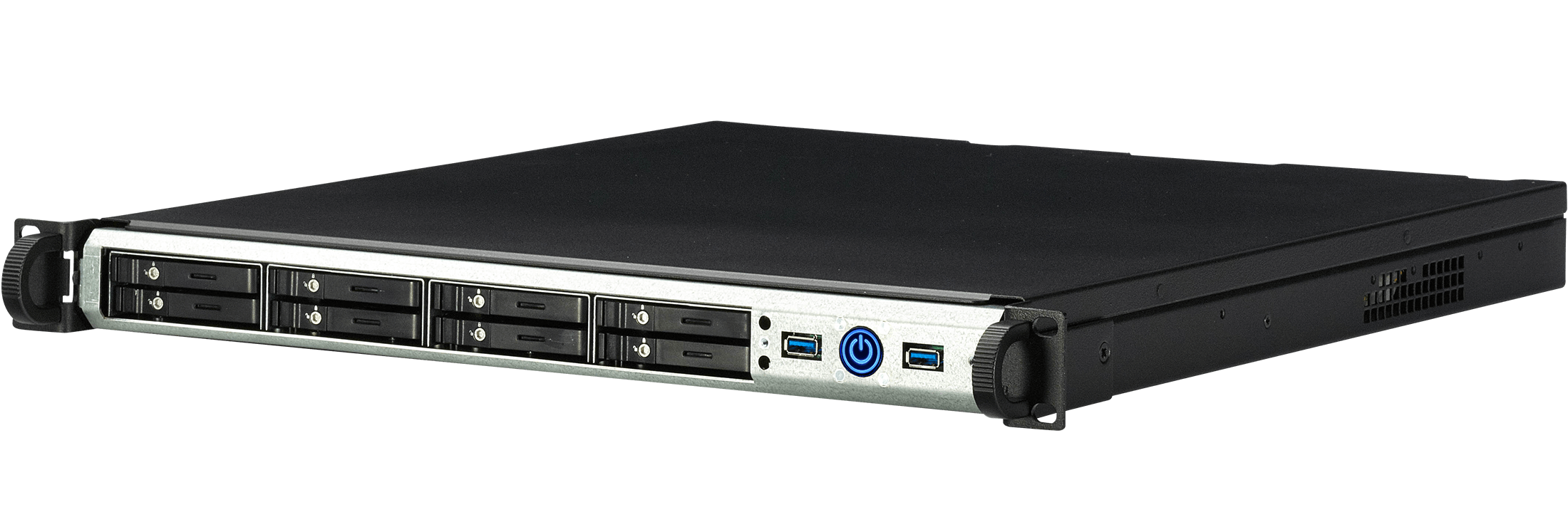

- Hot Swap HDD Bay: Up to 8x 2.5" or 4x NVMe/U.3
- Netzteil: Single <600W 110-230VAC
- PCIE Slots: Up to 2x PCIe x16 (x8 Lanes)
- Front USB: 2x USB3.0
FAQs
Bei konkreten Fragen erreichen Sie uns telefonisch unter +49 (0)6187 290150.
NUC Environmental Specifications
- Ambient Operating 0°C to +50°C (Local ambient temperature inside the chassis) * Processor performance may automatically decrease when the system operates in the top 5 °C of the ambient operating temperature ranges above.
- Sustained Storage Limits (i.e. warehouse):-20°C to +40°C
- Short Duration Limits (i.e. shipping): -40°C to +60°C
If the external ambient temperature exceeds 40°C, further thermal testing is required to ensure components do not exceed their maximum operating temperature.
Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of
the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.
Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum
operating temperature specified. It is recommended that the board temperature be at least room temperature
before attempting to power on the board. The operating and non-operating environment must avoid condensing
humidity.
