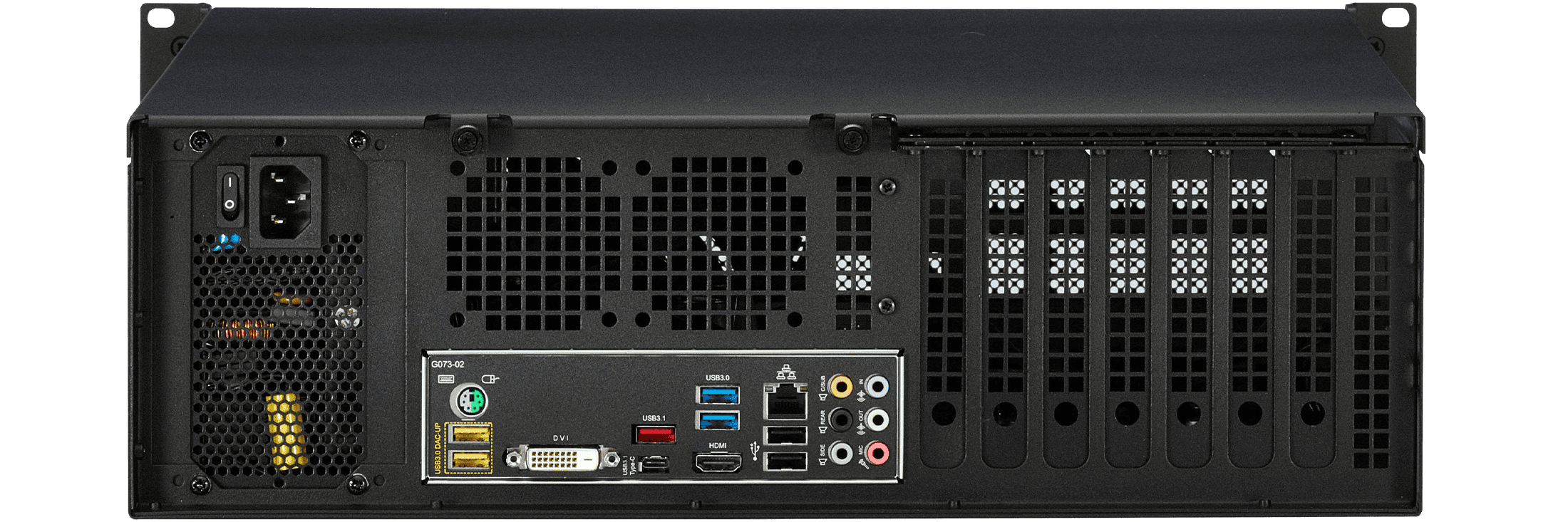

3U PC VT
Entfesseln Sie das Erweiterungspotenzial dieses 3U-PCs, der mit vertikalen PCIe-Steckplätzen ausgestattet ist. Ganz gleich, ob Sie kritische Workflows verwalten oder ressourcenintensive Aufgaben bewältigen müssen, es stehen bis zu 7 PCIe-Steckplätze zur Verfügung, die eine nahtlose Integration von NVIDIA-GPUs der Quadro-Serie für robuste Multi-PCI-Konfigurationen gewährleisten und das System zu einem echten Gewinn für anspruchsvolle Anwendungen machen.

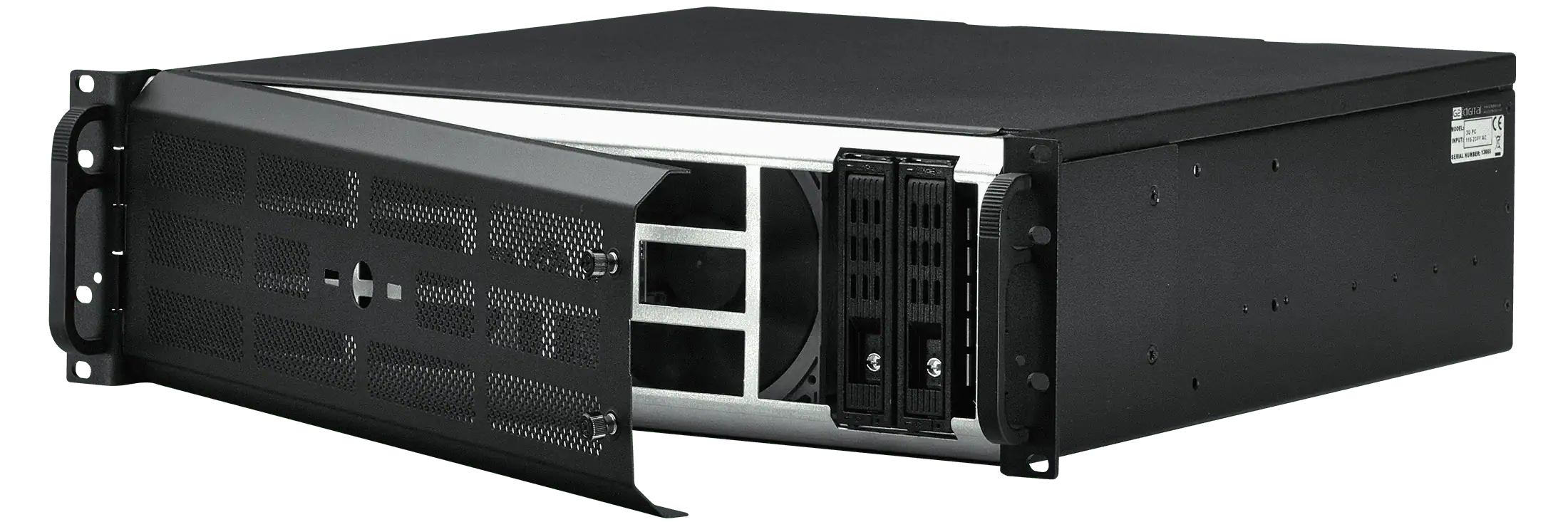

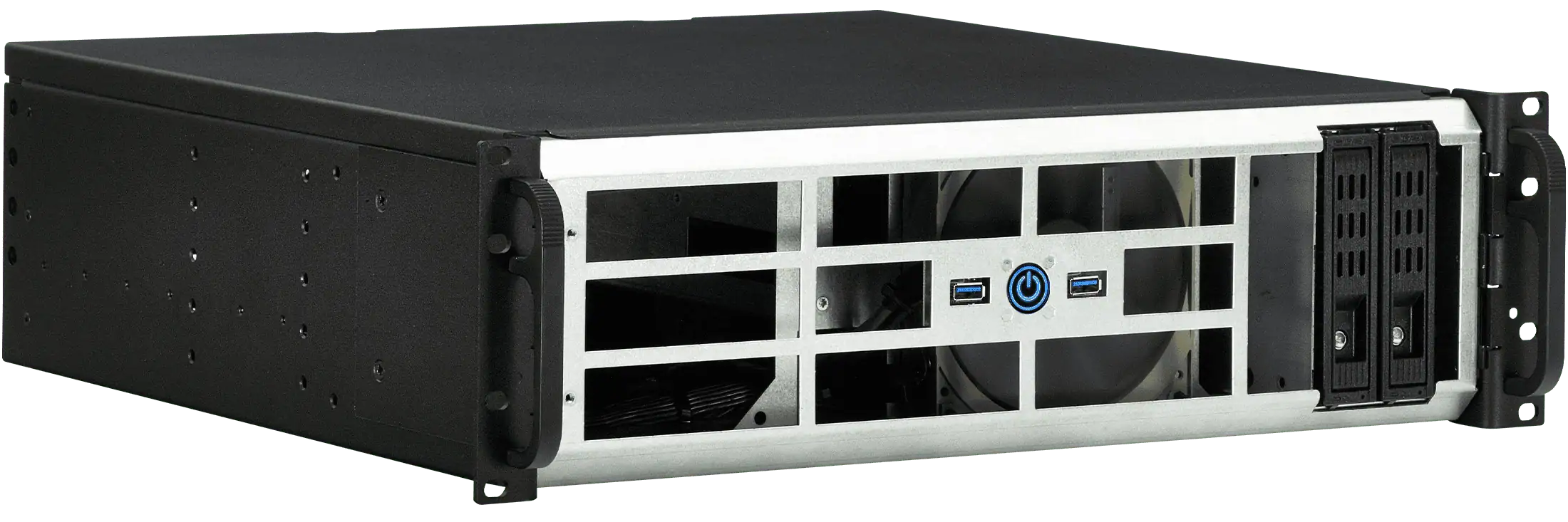

Seine vielseitigen Hot-Swap-Festplatteneinschübe nehmen bis zu 8x 2,5„-Laufwerke, 2x 3,5“-Laufwerke oder 6x NVMe/U.3-Optionen auf und bieten so eine beispiellose Flexibilität für Speicherlösungen mit hoher Dichte. Trotz seiner leistungsstarken Funktionen hat der 3U-PC einen kompakten Formfaktor von 425x457x133 mm und spart so wertvollen Platz im Rack, ohne an Leistung einzubüßen. Die redundanten Stromversorgungsoptionen sorgen für einen unterbrechungsfreien Betrieb, so dass Sie auch bei Spitzenbelastungen keine Sorgen haben müssen.
Gehäusespezifikation
- Größe (BxTxH): 425x457x133mm
- Gewicht: 12 KG
- Hot Swap HDD Bay: Up to 8x 2.5", 2x 3.5" or 6x NVMe/U.3
- Netzteil: Single/Redundant <1.2KW 110-230VAC

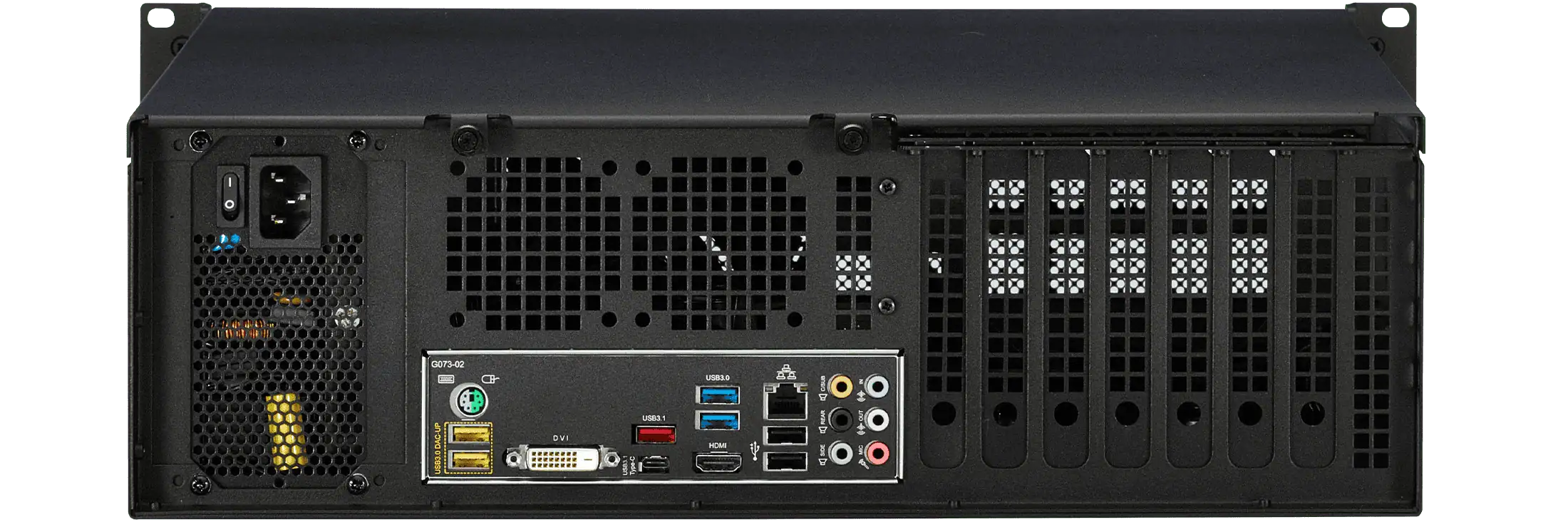

- PCIE Slots: Up to 7x PCIe x16 (x16 Lanes)

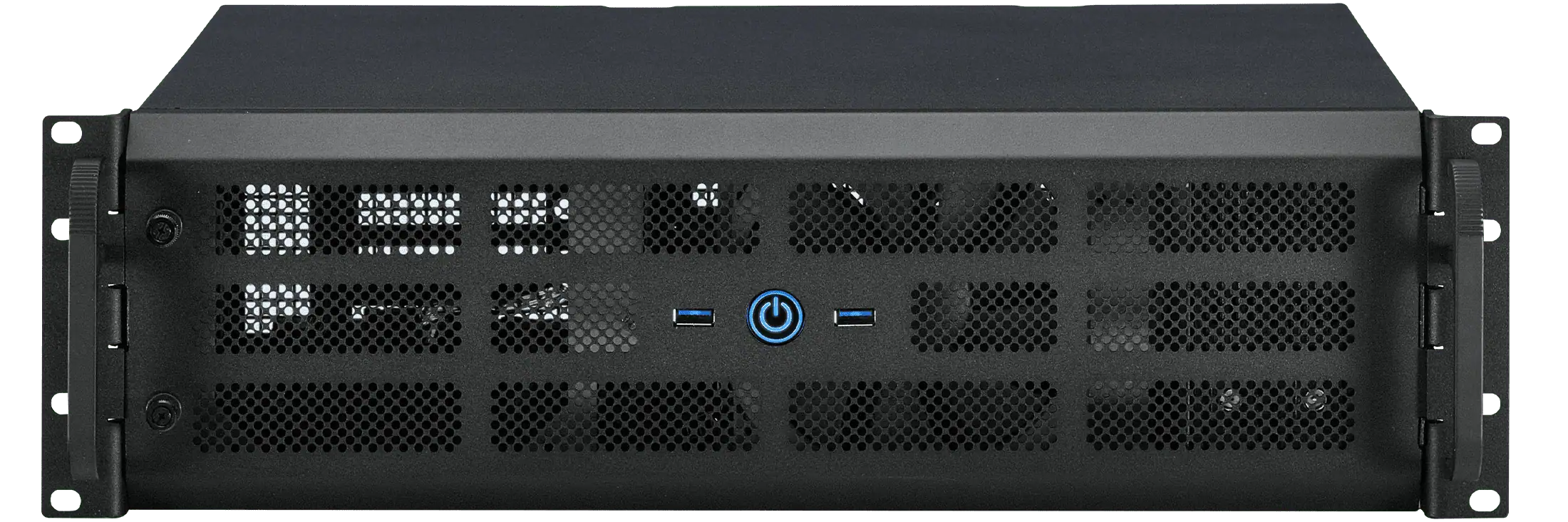

- Front USB: 2x USB3.0
FAQs
Bei konkreten Fragen erreichen Sie uns telefonisch unter +49 (0)6187 290150.
NUC Environmental Specifications
- Ambient Operating 0°C to +50°C (Local ambient temperature inside the chassis) * Processor performance may automatically decrease when the system operates in the top 5 °C of the ambient operating temperature ranges above.
- Sustained Storage Limits (i.e. warehouse):-20°C to +40°C
- Short Duration Limits (i.e. shipping): -40°C to +60°C
If the external ambient temperature exceeds 40°C, further thermal testing is required to ensure components do not exceed their maximum operating temperature.
Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of
the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.
Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum
operating temperature specified. It is recommended that the board temperature be at least room temperature
before attempting to power on the board. The operating and non-operating environment must avoid condensing
humidity.
