Case Specifications Specifications

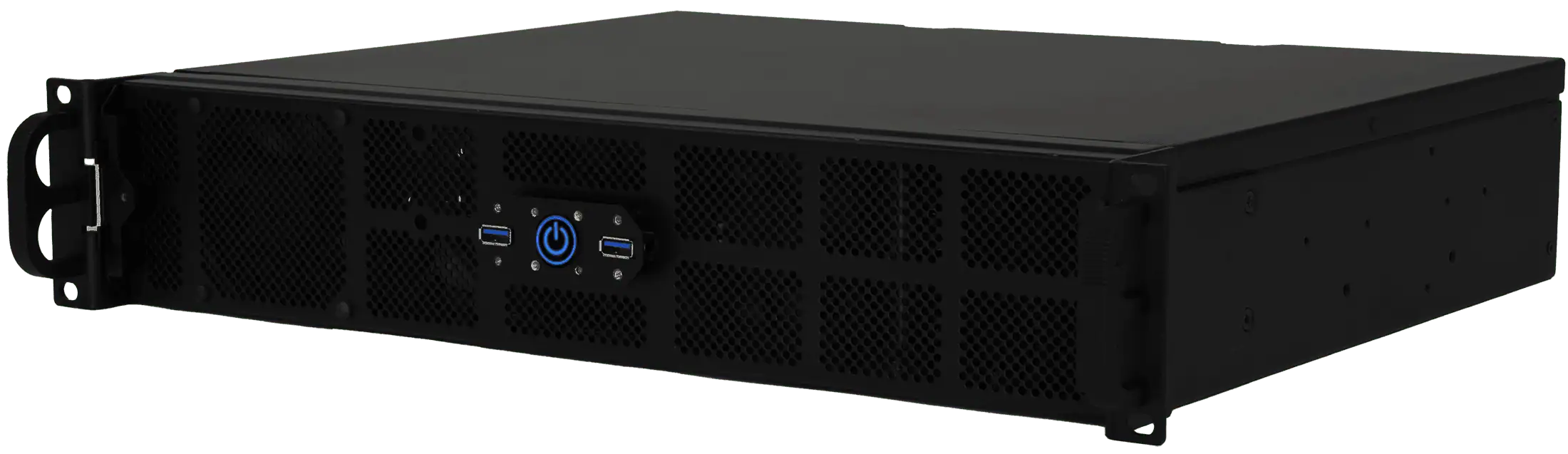

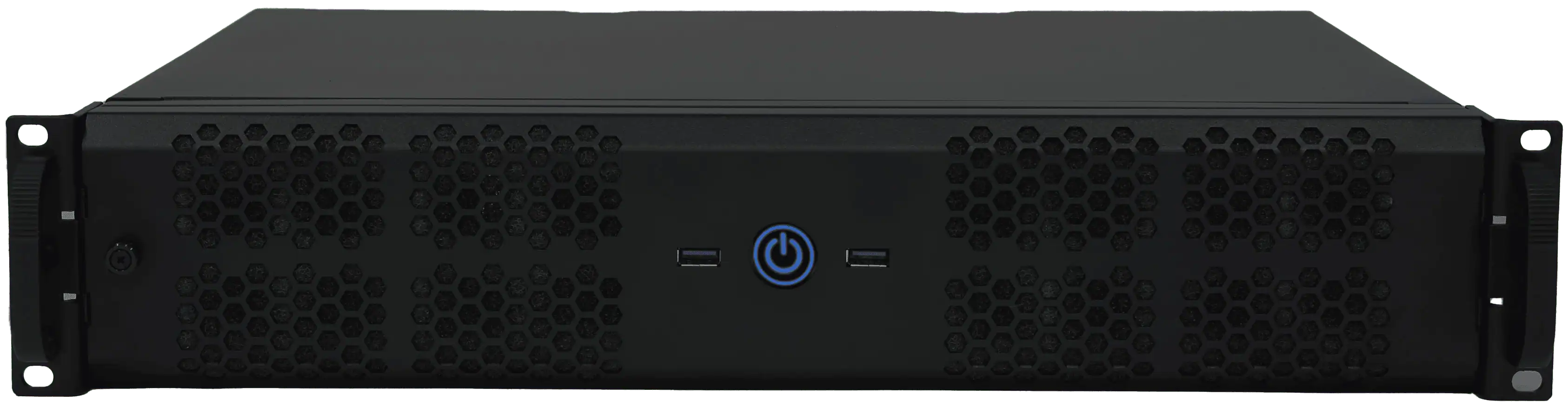

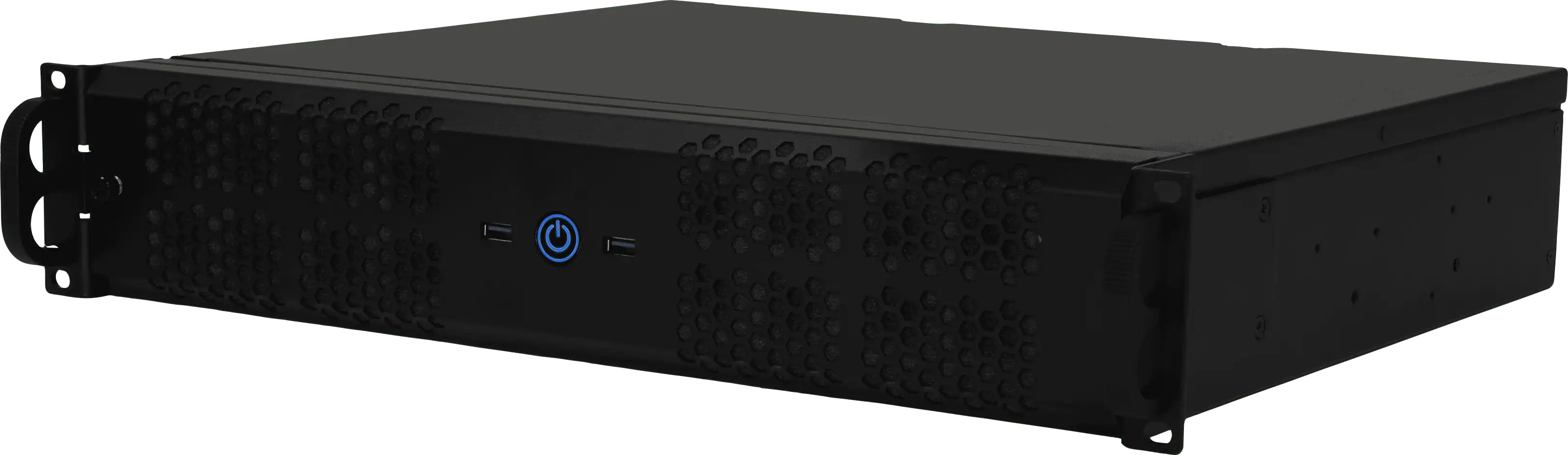

2U PC

Leistungsstark. Kompakt. Handlich.

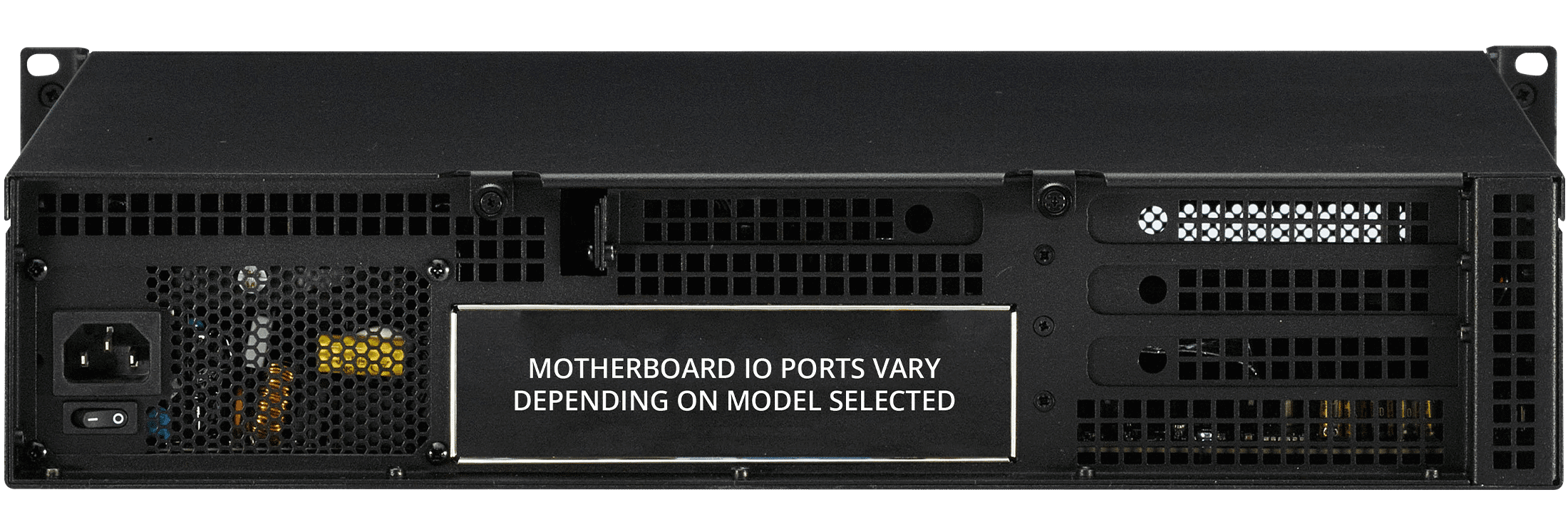

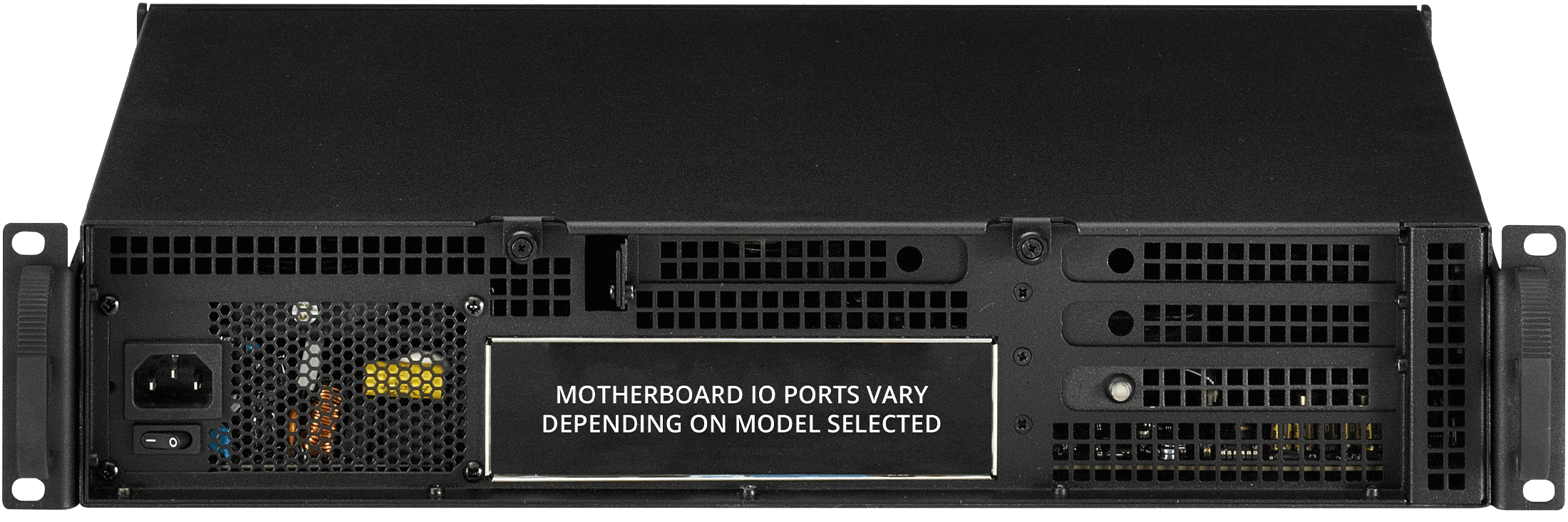

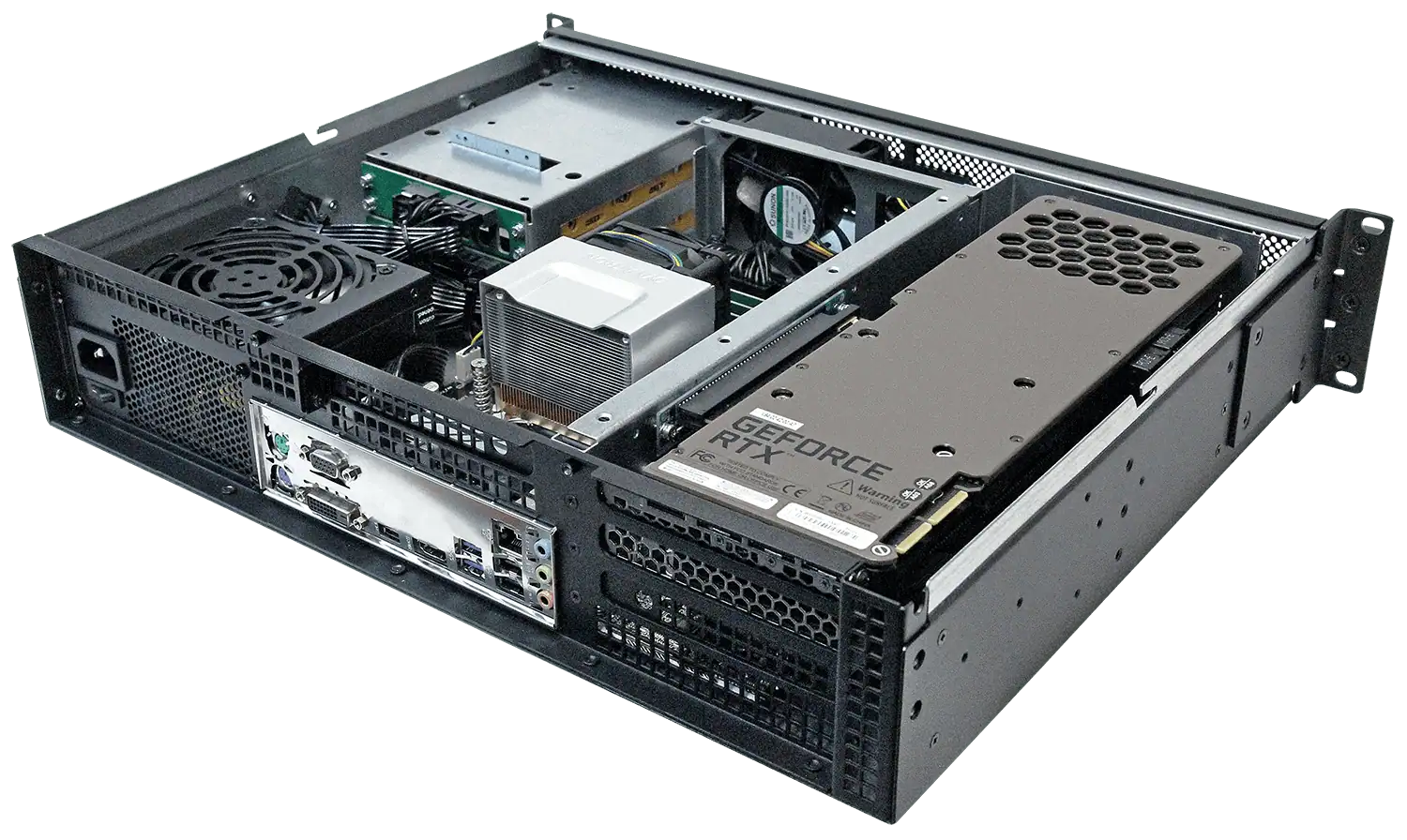

2U Nano Reverse

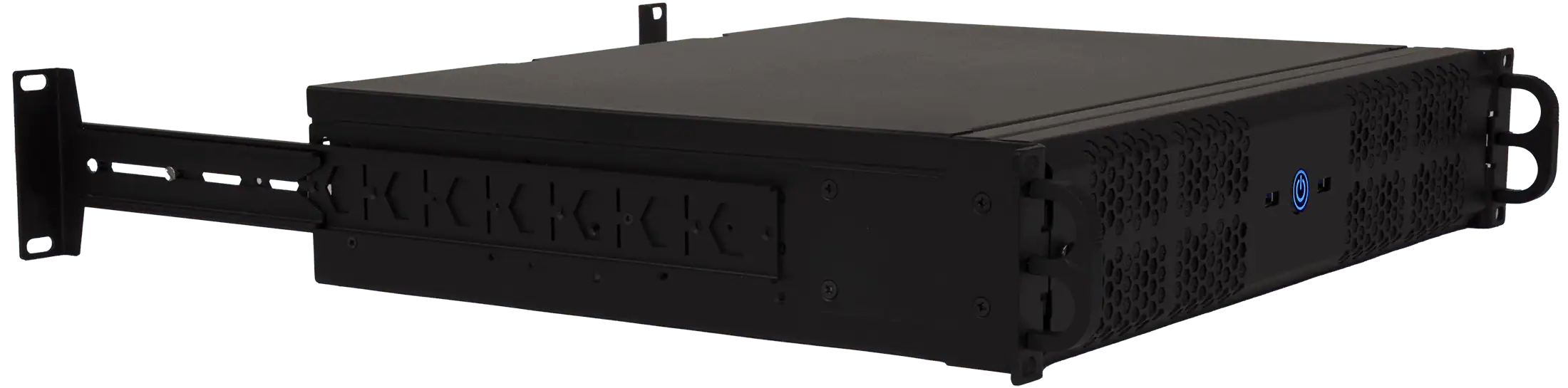

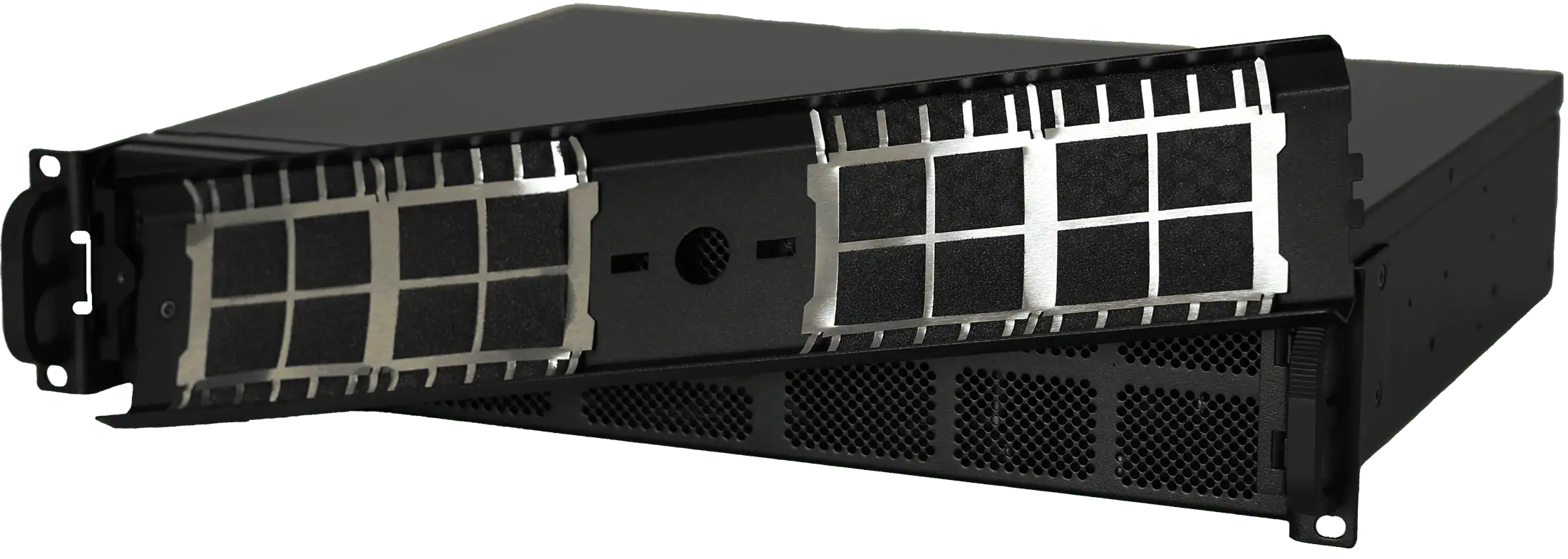

Optionaler Reverse Mount Kit

Unser leistungsfähiger 2U-Nano-Rackmount-PC ist extrem robust, beeindruckend kompakt und kann Spitzen-GPUs aufnehmen.

Filtern Sie nach Ihren Präferenzen und erkunden Sie die Registerkarten, um den richtigen PC für Ihre Anforderungen zu finden

Processor Icon
Feature Icon
Reset Filter
Entry Level

Diese Einsteiger-PCs sind unsere günstigsten PCs. Sie sind einfach gehalten und verfügen über erschwingliche, funktionale Spezifikationen, die genau das leisten, was Sie brauchen.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model C514L C14 C714L C914KL
Zur Wunschliste hinzufügen
Preis €1,413.13 +VAT €1,513.43 +VAT €1,630.27 +VAT €1,796.56 +VAT
Typische Vorlaufzeit 7 Working Days 7 Working Days 7 Working Days 7 Working Days
CPU
i5-14400 2.6GHz 10C/16T
i5-14400 2.6GHz 10C/16T
i7-14700 3.4GHz 20C/28T
i9-14900K 3.2GHz 24C/32T
RAM
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
HDD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 NVMe Crucial T500 SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX Intel UHD 730 with HDMI , DisplayPort Output(s) Intel UHD 730 with HDMI & DisplayPort Output(s) Intel UHD 770 with HDMI , DisplayPort Output(s) Intel UHD 770 with HDMI , DisplayPort Output(s)
Spezifikation PDF
Garantieerweiterung
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available Not quoted options available Not quoted options available
LAN Realtek 2.5Gb LAN (2.5Gb/s) Realtek 2.5Gb LAN (2.5Gb/s) Realtek 2.5Gb LAN (2.5Gb/s) Realtek 2.5Gb LAN (2.5Gb/s)
Serial Ports 1 Optional Ports Available Not available on this model 1 Optional Ports Available 1 Optional Ports Available
Thunderbolt Ports Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product
Audio Ports 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In)
Erweiterungs Slot 1 PCIe x16 (Full Height) 3" (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16 Lanes, Gen 5.0)
Erweiterungs Slot 2 Not Quoted - Options Available (x1 Lanes, Gen 3.0) Empty Slot - Call us for options Not Quoted - Options Available (x1 Lanes, Gen 3.0) Not Quoted - Options Available (x1 Lanes, Gen 3.0)
Erweiterungs Slot 3 Not available with this case PCIe x16 (Full Height) 4" (x4 Lanes, Gen 4.0) Not available with this case Not available with this case
Workstation

Unsere Geräte der Workstation-Klasse verbessern das PC-Erlebnis noch weiter und verfügen über die neuesten Technologien und Funktionen. Diese brillanten Geräte sind für den harten und ständigen Einsatz konzipiert und helfen Ihnen, mehr aus Ihrem Motherboard herauszuholen.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model W512 W512 W514K W712 W714K W14 W914K W15 WR9 W914K
Zur Wunschliste hinzufügen
Preis €1,789.99 +VAT €1,804.22 +VAT €1,951.61 +VAT €1,973.60 +VAT €2,084.20 +VAT €2,182.99 +VAT €2,239.47 +VAT €2,375.82 +VAT €2,418.60 +VAT €2,431.50 +VAT
Typische Vorlaufzeit 5 Working Days 5 Working Days 8 Working Days 5 Working Days 8 Working Days 7 Working Days 8 Working Days 7 Working Days 7 Working Days 12 Working Days
CPU
i5-12400 2.5GHz 6C/12T
i5-12400 2.5GHz 6C/12T
i5-14600K 3.5GHz 14C/20T
i7-12700 1.6GHz 12C/20T
i7-14700K 3.4GHz 20C/28T
i5-14400 2.6GHz 10C/16T
i9-14900K 3.2GHz 24C/32T
Ultra 7 265K 3.3GHz 20C/20T
9700X 3.8GHz 8C/16T
i913
i9-14900K 3.2GHz 24C/32T
RAM
2x 8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 192GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 192GB
2x 8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
HDD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 NVMe Crucial T500 SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 NVMe Crucial T500 SSD 500GB M.2 PCIe 4.0 NVMe Crucial T500 SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX Intel UHD 730 with HDMI Output(s) Intel UHD 730 with HDMI Output(s) Intel UHD 770 with HDMI Output(s) Intel UHD 770 with HDMI Output(s) Intel UHD 770 with HDMI Output(s) Intel UHD 730 with HDMI Output(s) Intel UHD 770 with HDMI Output(s) Intel HD Graphics with HDMI Output(s) Radeon Graphics with HDMI Output(s) Intel UHD 770 with HDMI Output(s)
Spezifikation PDF
Garantieerweiterung
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available
LAN Killer E3100G (2.5Gb/s) & Intel i219V (1Gb/s) Killer E3100G (2.5Gb/s) & Intel i219V (1Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Killer E3100G (2.5Gb/s) & Intel i219V (1Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Marvell® AQtion AQC113CS 10Gb (10Gb/s) & Intel i225 (2.5Gb/s) Intel i225-V (2.5Gb/s) & Marvell AQtion AQC113CS (10Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s)
Serial Ports Not available Not available 1 Optional Ports Available Not available 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available
Thunderbolt Ports 2x Gen4 Ports 2x Gen4 Ports 2x Gen4 Ports 2x Gen4 Ports 1x Gen3 Optional Ports Available1x Gen4 Ports Not Available on this Product 2x Gen4 Ports
Audio Ports Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone & Optical Digital Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone & Optical Digital 5x 3.5mm Ports Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone & Optical Digital 5x 3.5mm Ports 5x 3.5mm Ports 5x 3.5mm Ports 2x 3.5mm Ports (Stereo Out, Mic In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 5x 3.5mm Ports
Erweiterungs Slot 1 PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 5.0)
Erweiterungs Slot 2 Not Quoted - Option Available Not Quoted - Option Available Not Quoted - Options Available (x8 Lanes, Gen 5.0) Not Quoted - Option Available Not Quoted - Options Available (x8 Lanes, Gen 5.0) Empty Slot - Call us for options Not Quoted - Options Available (x8 Lanes, Gen 5.0) Upgrade Available - (x8 Lanes, Gen 5.0) Empty Slot - Call us for options Not Quoted - Option Available
Erweiterungs Slot 3 Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case PCIe x16 (Full Height) 4" (x8 Lanes, Gen 5.0) Not available with this case PCIe x16 (Full Height) 4" (x16/x8 Lanes, Gen 5.0) Not available with this case
Performance

Diese PCs sind die Spitzenmodelle unserer Produktfamilie. Sie wurden entwickelt, um konstant die beste Leistung ihrer Klasse zu liefern und bieten außergewöhnliche Unterstützung für die neuesten Prozessoren, Grafikkarten und High-End-Komponenten.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model R9795X R9795X
Zur Wunschliste hinzufügen
Preis €2,107.71 +VAT €2,119.13 +VAT
Typische Vorlaufzeit 5 Working Days 5 Working Days
CPU
7950X 4.5GHz 16C/32T
7950X 4.5GHz 16C/32T
RAM
8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
HDD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 NVmE Crucial P3 SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX ASPEED AST2600 BMC with VGA , 1 (CPU only)x HDMI , DisplayPort Output(s) ASPEED AST2600 BMC with VGA , HDMI , DisplayPort Output(s)
Spezifikation PDF
Garantieerweiterung
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available
LAN 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s)
Remote Management IPMI (Remote Management) IPMI (Remote Management)
Serial Ports 1 1
Thunderbolt Ports Not Available on this Product
Audio Ports No Audio Output No Audio Output
Erweiterungs Slot 1 PCIe x16 (Full Height) (x4 Lanes, Gen 5.0) PCIe x16 (Full Height)(x4 Lanes, Gen 5.0)
Erweiterungs Slot 2 PCIe x16 (Full Height) 3" (x16 Lanes, Gen 4.0) PCIe x16 (Full Height) 3"(x16 Lanes, Gen 4.0)
Industrial

Unsere Industrie-PCs sind speziell für längere Lebenszyklen konzipiert, in denen Hardwarewechsel selten oder unpraktisch sind. Sie sind ideal für die Unterstützung und Wartung von Legacy-Software und Betriebssystemen.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model i512 i513 ID14 i514 i712 IR79 i714 i912 i914K
Zur Wunschliste hinzufügen
Preis €1,714.49 +VAT €1,785.32 +VAT €1,828.88 +VAT €1,863.25 +VAT €1,898.10 +VAT €2,066.00 +VAT €2,077.39 +VAT €2,110.88 +VAT €2,263.09 +VAT
Typische Vorlaufzeit 10 Working Days 10 Working Days 7 Working Days 10 Working Days 10 Working Days 7 Working Days 10 Working Days 10 Working Days 10 Working Days
CPU
i5-12400 2.5GHz 6C/12T
i5-13400 2.5GHz 10C/16T
i5-14400 2.6GHz 10C/16T
i5-14400 2.6GHz 10C/16T
i7-12700 1.6GHz 12C/20T
9700X 3.8GHz 8C/16T
i7-14700 3.4GHz 20C/28T
i9-12900 2.4GHz 16C/24T
i9-14900K 3.2GHz 24C/32T
RAM
16GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
HDD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 PCIe 4.0 NVMe Crucial P310 SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 PCIe 4.0 NVMe Crucial T500 SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX ASPEED AST2600 with VGA , HDMI , DisplayPort Output(s) ASPEED AST2600 with VGA , HDMI , DisplayPort Output(s) Intel UHD 730 with 4x DisplayPort Output(s) ASPEED AST2600 with VGA , HDMI , DisplayPort Output(s) ASPEED AST2600 with VGA , HDMI , DisplayPort Output(s) ASPEED AST2600 BMC with VGA & HDMI & DisplayPort Output(s) ASPEED AST2600 with VGA , HDMI , DisplayPort Output(s) ASPEED AST2600 with VGA , HDMI , DisplayPort Output(s) ASPEED AST2600 with VGA , HDMI , DisplayPort Output(s)
Spezifikation PDF
Garantieerweiterung
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 3 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available
LAN 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s) Intel i219LM (1Gb/s) & Intel i225LM (2.5Gb/s) 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s)
Remote Management IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management)
Serial Ports 1 1 1 (1 Optional Ports Available) 1 1 1 1 1 1
Thunderbolt Ports Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product
Audio Ports No Audio Output No Audio Output 3x 3.5mm Ports (Mic-in, Line-in, Line-out) No Audio Output No Audio Output No Audio Output No Audio Output No Audio Output No Audio Output
Erweiterungs Slot 1 PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 4.0) PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 4.0) PCIe x16 (Full Height) 3" (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 4.0) PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 4.0) PCIe x16 (Full Height) 3" (x4 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 4.0) PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 4.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 4.0)
Erweiterungs Slot 2 Not Quoted - Option Available Not Quoted - Option Available Empty Slot - Call us for options Not Quoted - Options Available (x8 Lanes, Gen 4.0) Not Quoted - Option Available Empty Slot - Call us for options Not Quoted - Options Available (x8 Lanes, Gen 4.0) Not Quoted - Option Available Not Quoted - Options Available (x8 Lanes, Gen 4.0)
Erweiterungs Slot 3 Not available with this case Not available with this case PCIe x16 (Full Height) 4" (x4 Lanes, Gen 4.0) Not available with this case Not available with this case PCIe x16 (Full Height) 3" (x16 Lanes, Gen 4.0) Not available with this case Not available with this case Not available with this case
Server

Diese Architektur bietet Ihrem PC wichtige Funktionen der Serverklasse, von der IPMI-Verwaltung bis zum ECC-RAM. Diese beeindruckenden PCs sind für die Verwendung mit Windows-Desktop- und -Server-Betriebssystemen konzipiert und verbinden Leistung mit herausragender Zuverlässigkeit.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model S525 S545 S525 S545 S613 S565 S623 S565 S25
Zur Wunschliste hinzufügen
Preis €1,397.56 +VAT €1,560.06 +VAT €1,564.37 +VAT €1,667.91 +VAT €1,716.74 +VAT €1,910.86 +VAT €2,029.87 +VAT €2,100.38 +VAT €2,186.70 +VAT
Typische Vorlaufzeit 6 Working Days 6 Working Days 6 Working Days 6 Working Days 6 Working Days 6 Working Days 6 Working Days 6 Working Days 7 Working Days
CPU
W-1250 3.3GHz 6C/12T
2336 6C/12T
W-1250 3.3GHz 6C/12T
E-2336 2.9GHz 6C/12T
3204 1.9GHz 6C/6T
W-1290P 3.7GHz 10C/20T
4110 2.1GHz 8C/16T
W-1290P 3.7GHz 10C/20T
E-2336 2.9GHz 6C/12T
RAM
16GB Micron DDR4 3200MHz UDIMM 1.2V ECC Maximum configurable RAM for this unit is 128GB
16GB Micron DDR4 3200MHz UDIMM 1.2V ECC Maximum configurable RAM for this unit is 128GB
16GB Micron DDR4 3200MHz UDIMM ECC Maximum configurable RAM for this unit is 128GB
16GB Micron DDR4 3200MHz UDIMM ECC Maximum configurable RAM for this unit is 128GB
16GB Micron DDR4 3200MHz RDIMM ECC Maximum configurable RAM for this unit is 512GB
16GB Micron DDR4 3200MHz UDIMM 1.2V ECC Maximum configurable RAM for this unit is 128GB
16GB Micron DDR4 3200MHz RDIMM ECC Maximum configurable RAM for this unit is 512GB
16GB Micron DDR4 3200MHz UDIMM ECC Maximum configurable RAM for this unit is 128GB
2x 8GB Micron DDR4 3200MHz UDIMM ECC Maximum configurable RAM for this unit is 128GB
HDD Not Quoted - Options Available Not Quoted - Options Available Not Quoted - Options Available Not Quoted - Options Available Not Quoted - Options Available Not Quoted - Options Available Not Quoted - Options Available Not Quoted - Options Available 512GB M.2 PCIe 4.0 Samsung PM9A1a SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX ASPEED AST2500 with VGA , HDMI Output(s) ASPEED AST2500 with VGA , HDMI Output(s) ASPEED AST2500 with VGA , 1 (Only with Integrated Graphics Processor)x HDMI Output(s) ASPEED AST2500 with VGA , 1 (Only with Integrated Graphics Processor)x HDMI Output(s) ASPEED AST2500 with VGA Output(s) ASPEED AST2500 with VGA , HDMI Output(s) ASPEED AST2500 with VGA Output(s) ASPEED AST2500 with VGA , 1 (Only with Integrated Graphics Processor)x HDMI Output(s) ASPEED AST2500 with VGA Output(s)
Spezifikation PDF
Garantieerweiterung
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 3 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available
LAN 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s) 4x Marvell 88E1543 (1Gb/s) 2x Intel i210 (1Gb/s) 4x Marvell 88E1543 (1Gb/s) 2x Intel i210 (1Gb/s) 2x Intel i210 (1Gb/s)
Remote Management IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management)
Serial Ports 1 1 1 1 1 1 1 1 1
Thunderbolt Ports Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product
Audio Ports No Audio Output No Audio Output No Audio Output No Audio Output No Audio Output No Audio Output No Audio Output No Audio Output No Audio Output
Erweiterungs Slot 1 PCIe x16 (Full Height) 3"(x1 Lanes, Gen 3.0) PCIe x16 (Full Height) 3"(x1 Lanes, Gen 3.0) PCIe x16 (Full Height) 3" (x1 Lanes, Gen 3.0) PCIe x16 (Full Height) 3" (x1 Lanes, Gen 3.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 3.0) PCIe x16 (Full Height) 3"(x1 Lanes, Gen 3.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 3.0) PCIe x16 (Full Height) 3" (x1 Lanes, Gen 3.0) PCIe x16 (Full Height) 3" (x16 Lanes, Gen 4.0)
Erweiterungs Slot 2 Not Quoted - Option Available Not Quoted - Option Available Not Quoted - Options Available (x16 Lanes, Gen 4.0 (w/ 11th Gen)) Not Quoted - Options Available (x16 Lanes, Gen 4.0 (w/ 11th Gen)) Not Quoted - Options Available (x8 Lanes, Gen 3.0) Not Quoted - Option Available Not Quoted - Options Available (x8 Lanes, Gen 3.0) Not Quoted - Options Available (x16 Lanes, Gen 4.0 (w/ 11th Gen)) Empty Slot - Call us for options
Erweiterungs Slot 3 Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case PCIe x16 (Full Height) 4"
vMix

Diese Builds wurden mit unseren rackmontierten Gehäusen erstellt und an die vMix-Referenzsysteme angepasst. Sie decken verschiedene Performance-Workloads von Low- bis High-End ab, enthalten jedoch nicht die vMix-Lizenz oder –Software.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model Ruby 2 Ruby Topaz Ruby Topaz
Zur Wunschliste hinzufügen
Preis €2,869.90 +VAT €2,914.10 +VAT €3,134.01 +VAT €3,241.53 +VAT €3,979.64 +VAT
Typische Vorlaufzeit 8 Working Days 12 Working Days 8 Working Days 8 Working Days 12 Working Days
CPU
i7-13700K 3.4GHz 16C/24T
i7-13700K 3.4GHz 16C/24T
i9-14900K 3.2GHz 24C/32T
i7-14700K 3.4GHz 20C/28T
i9-14900K 3.2GHz 24C/32T
RAM
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 96GB
2x 8GB Crucial DDR5 5600MHz DIMM Maximum configurable RAM for this unit is 128GB
2x 8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 96GB
HDD 1TB M.2 PCIe 4.0 Samsung 990 Pro SSD 1TB M.2 PCIe 4.0 Samsung 990 Pro SSD 1TB M.2 PCIe 4.0 Samsung 990 Pro SSD 1TB M.2 PCIe 4.0 Samsung 990 Pro SSD 1TB M.2 PCIe 4.0 Samsung 990 Pro SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX Intel UHD 770 with HDMI Output(s) Intel UHD 770 with HDMI Output(s) No Motherboard Graphics Outputs - PCIe GPU Required Intel UHD 770 with HDMI Output(s) No Motherboard Graphics Outputs - PCIe GPU Required
Spezifikation PDF
Garantieerweiterung
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Motherboard Ports Coming Soon
DVD Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available
LAN Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Intel 2.5 GbE (2.5Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Intel 2.5 GbE (2.5Gb/s)
Serial Ports 1 Optional Ports Available 1 Optional Ports Available Not available 1 Optional Ports Available Not available
Thunderbolt Ports 2x Gen4 Ports 2x Gen4 Ports 2x Gen4 Ports 2x Gen4 Ports 1x Gen3 Optional Ports Available
Audio Ports 5x 3.5mm Ports 5x 3.5mm Ports 5x 3.5mm Ports 5x 3.5mm Ports 5x 3.5mm Ports & Optical Digital
Erweiterungs Slot 1 PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3"(x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3" (x4 Lanes, Gen 4.0) PCIe x16 (Full Height) 3" (x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height) 3"(x4 Lanes, Gen 4.0)
Erweiterungs Slot 2 Not Quoted - Options Available (x8 Lanes, Gen 5.0) Not Quoted - Option Available PCIe x16 (Full Height) 4" (x16/x8 Lanes, Gen 5.0) Empty Slot - Call us for options PCIe x16 (Full Height) 4"(x16/x8 Lanes, Gen 5.0)
Erweiterungs Slot 3 Not available with this case Not available with this case Not available with this case PCIe x16 (Full Height) 3" (x8 Lanes, Gen 5.0) Not available with this case
