4U Nano

Elite. Kompakt. Außergewöhnlich.

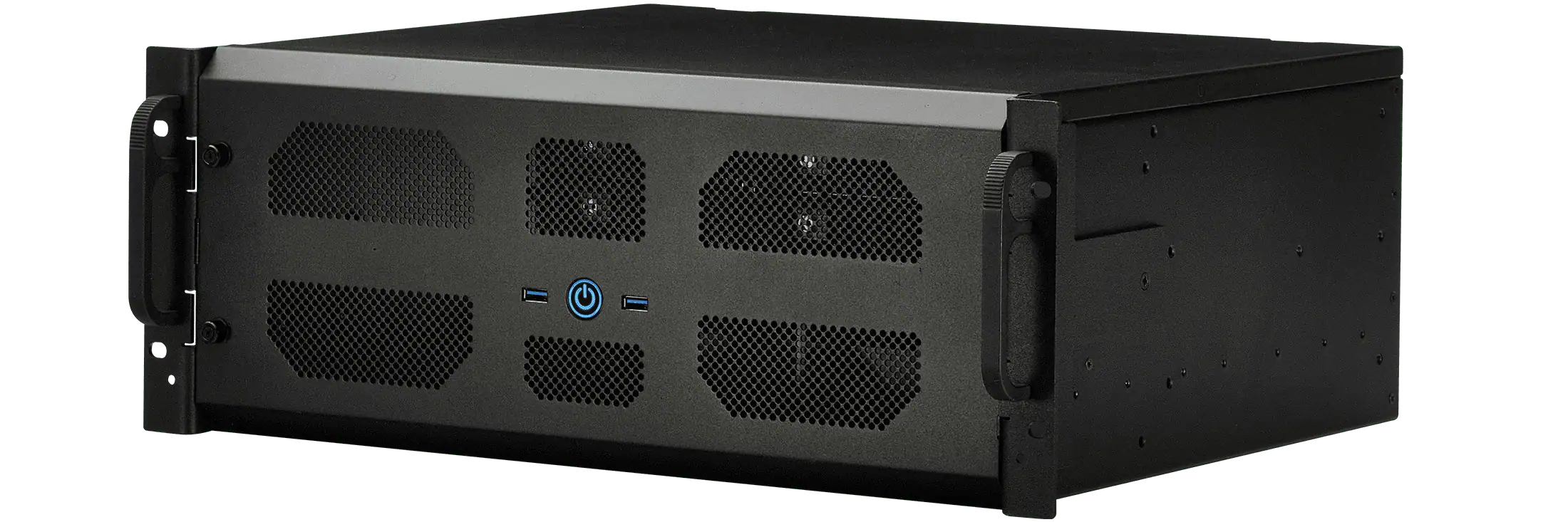

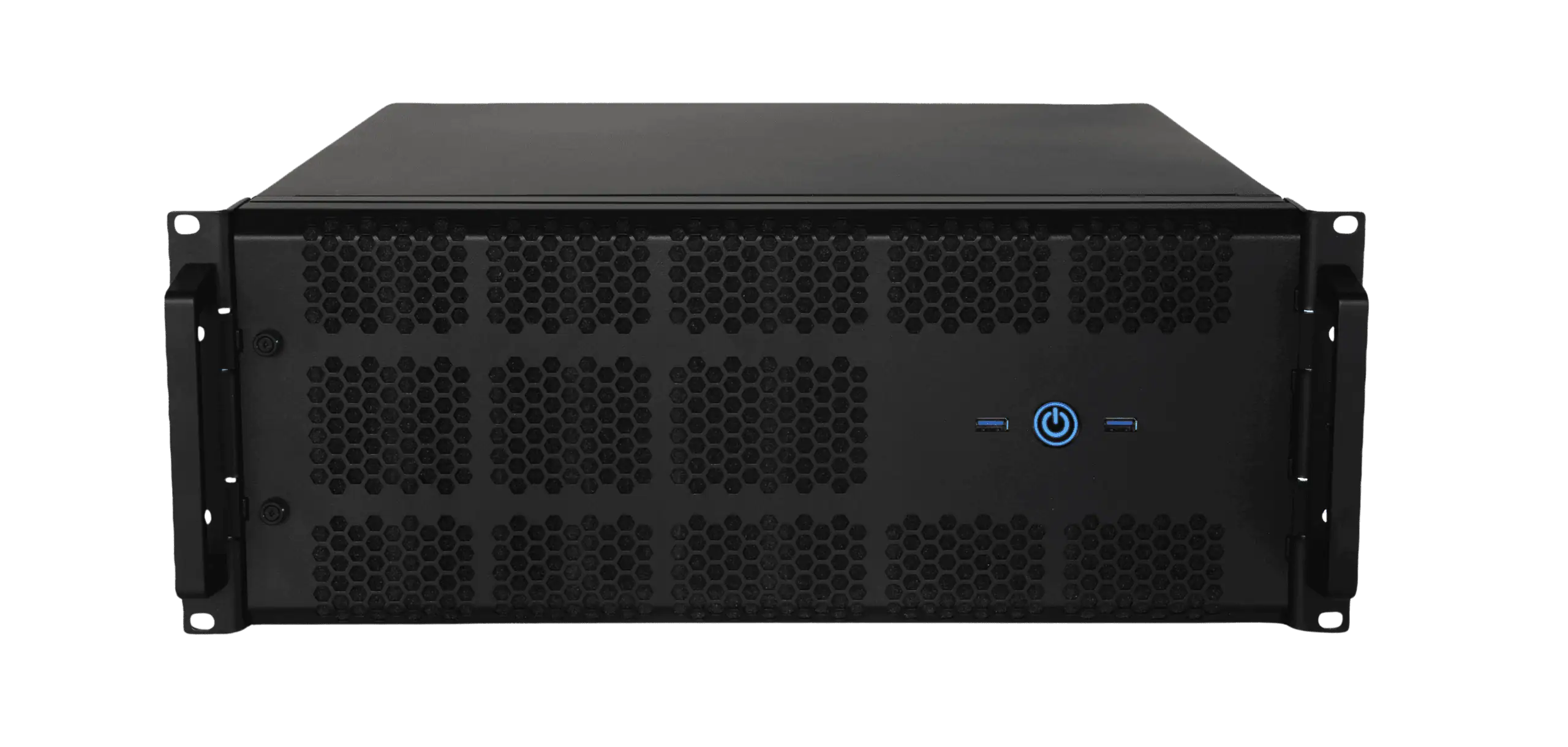

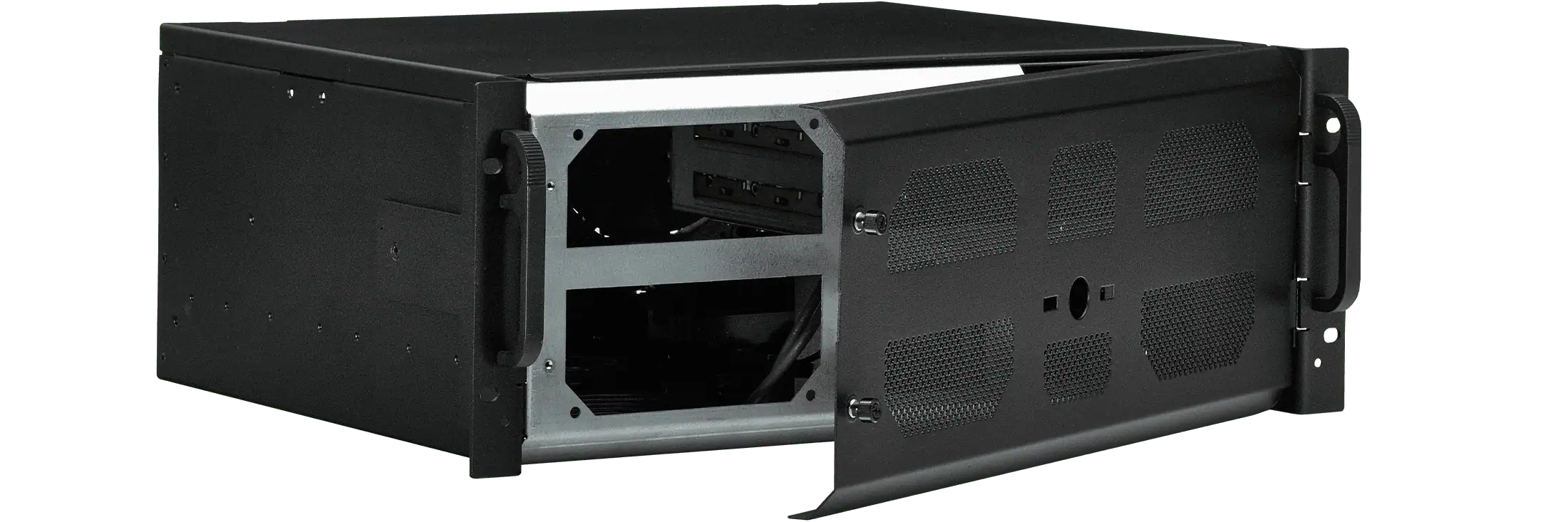

4U Nano Front
abnehmbare Frontabdeckung mit Powerbutton und DUAL-USB

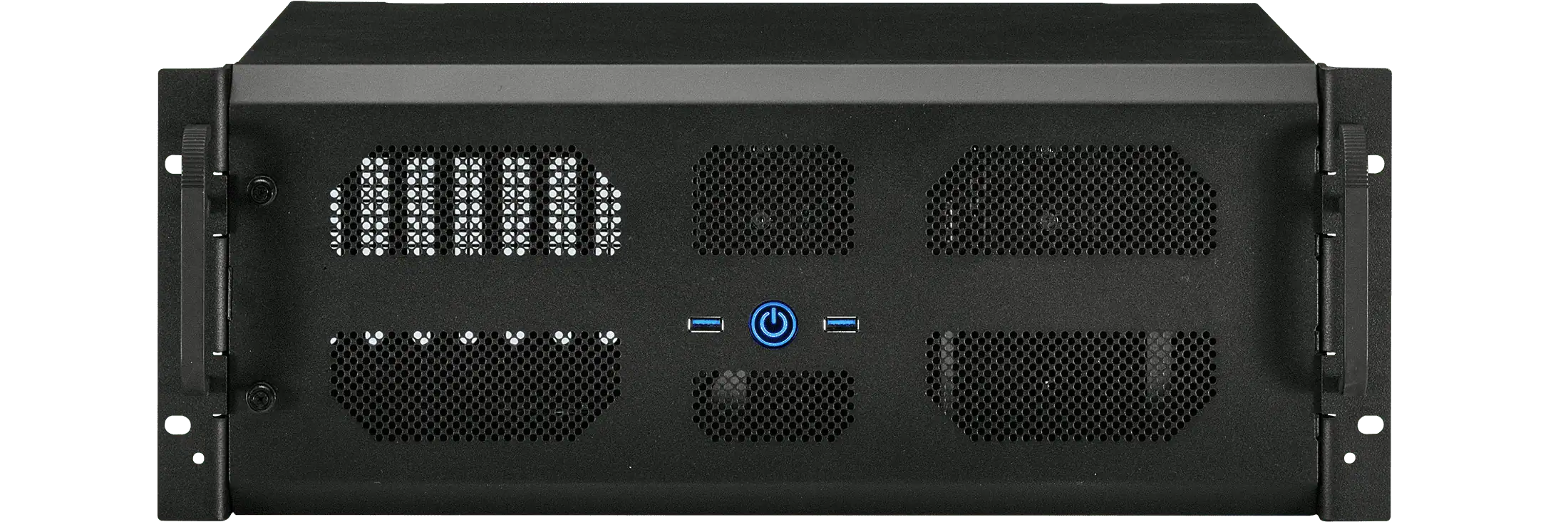

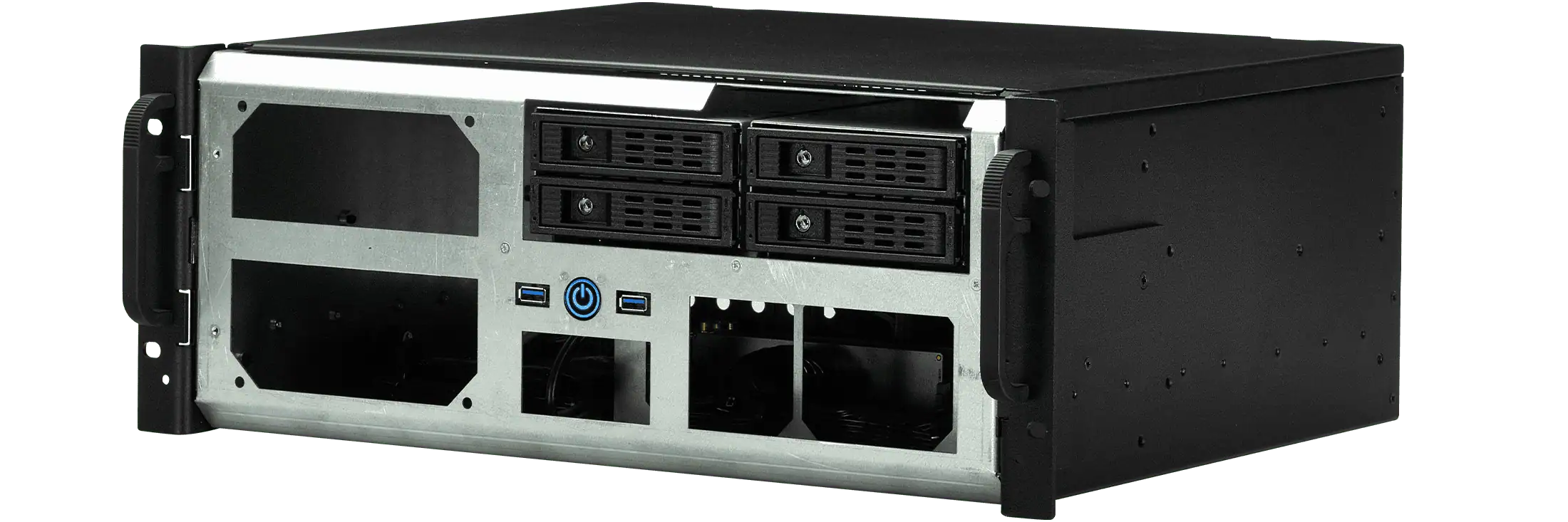

4U Nano Bay
Optional bis zu 4x 3.5/2.5" Hot Swap Drive bays

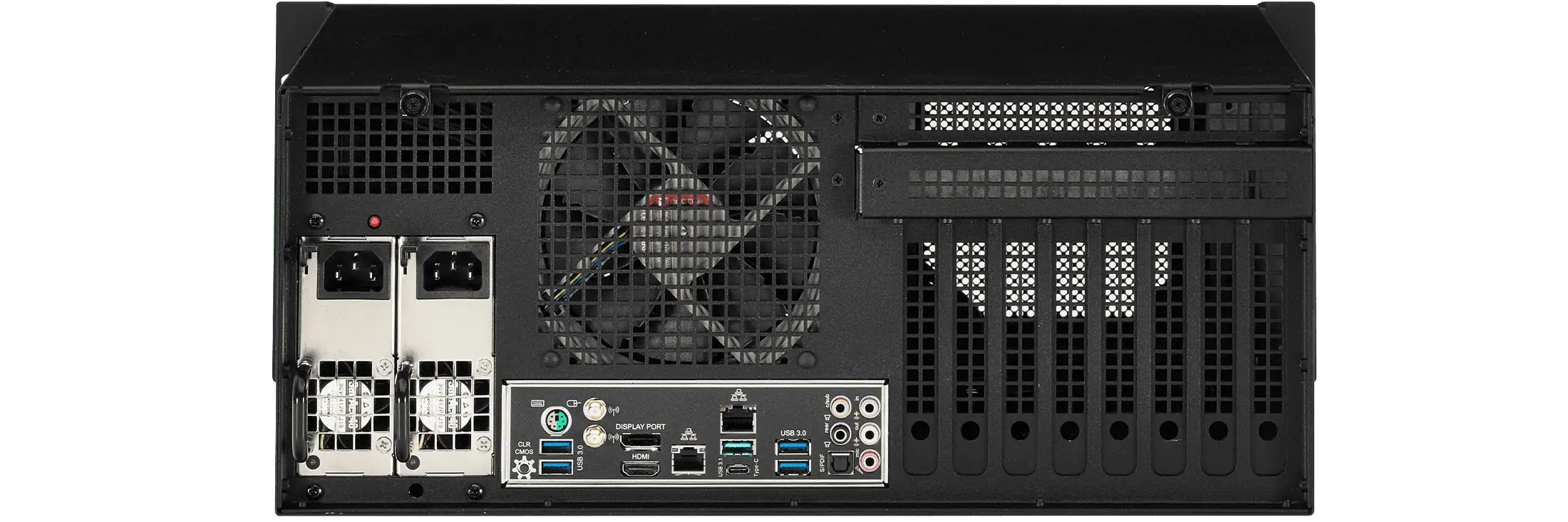

4U Nano redundantes Netzteil
Optionales 800W Redundant-Netzteil

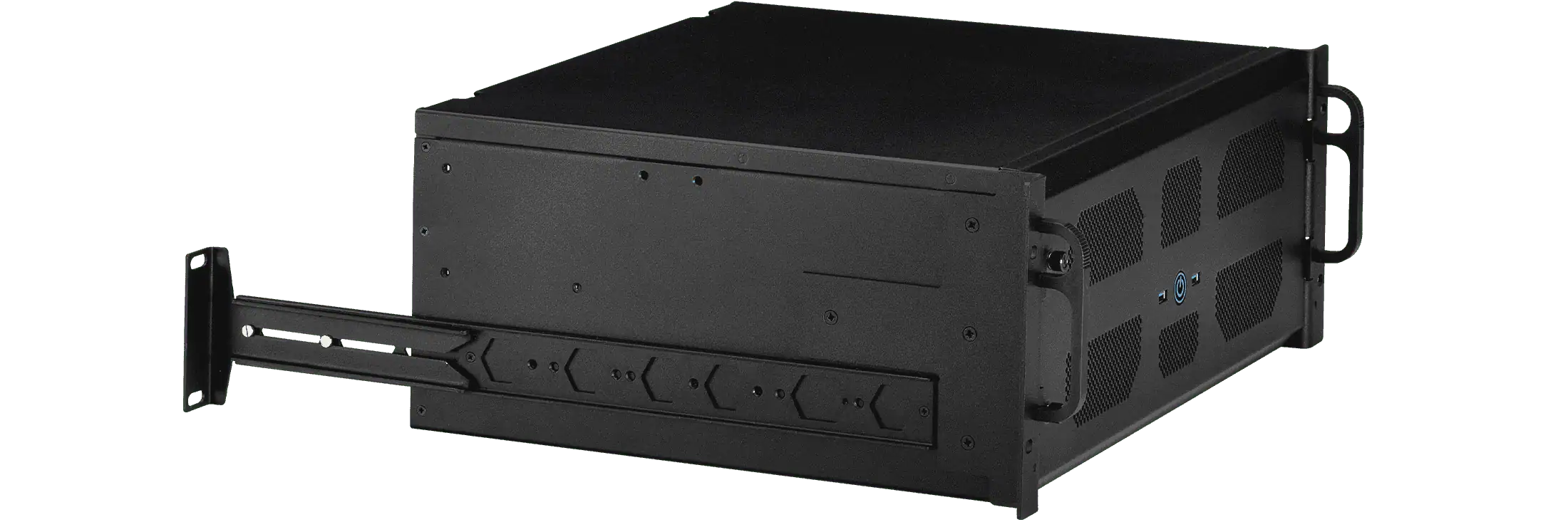

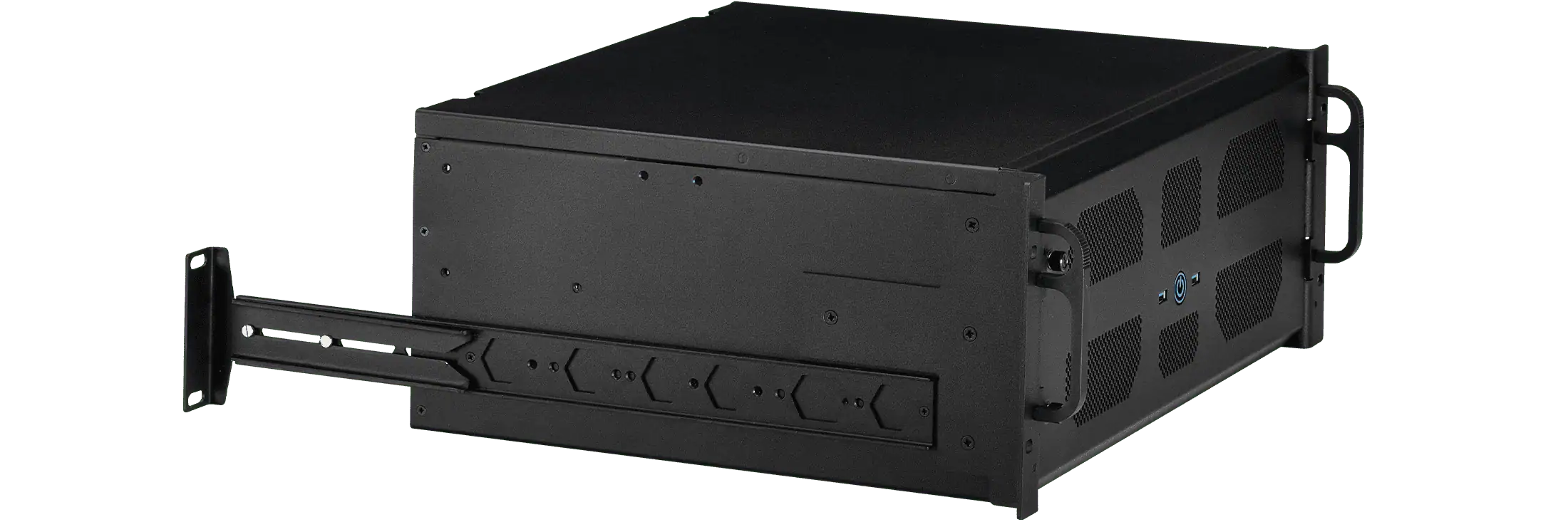

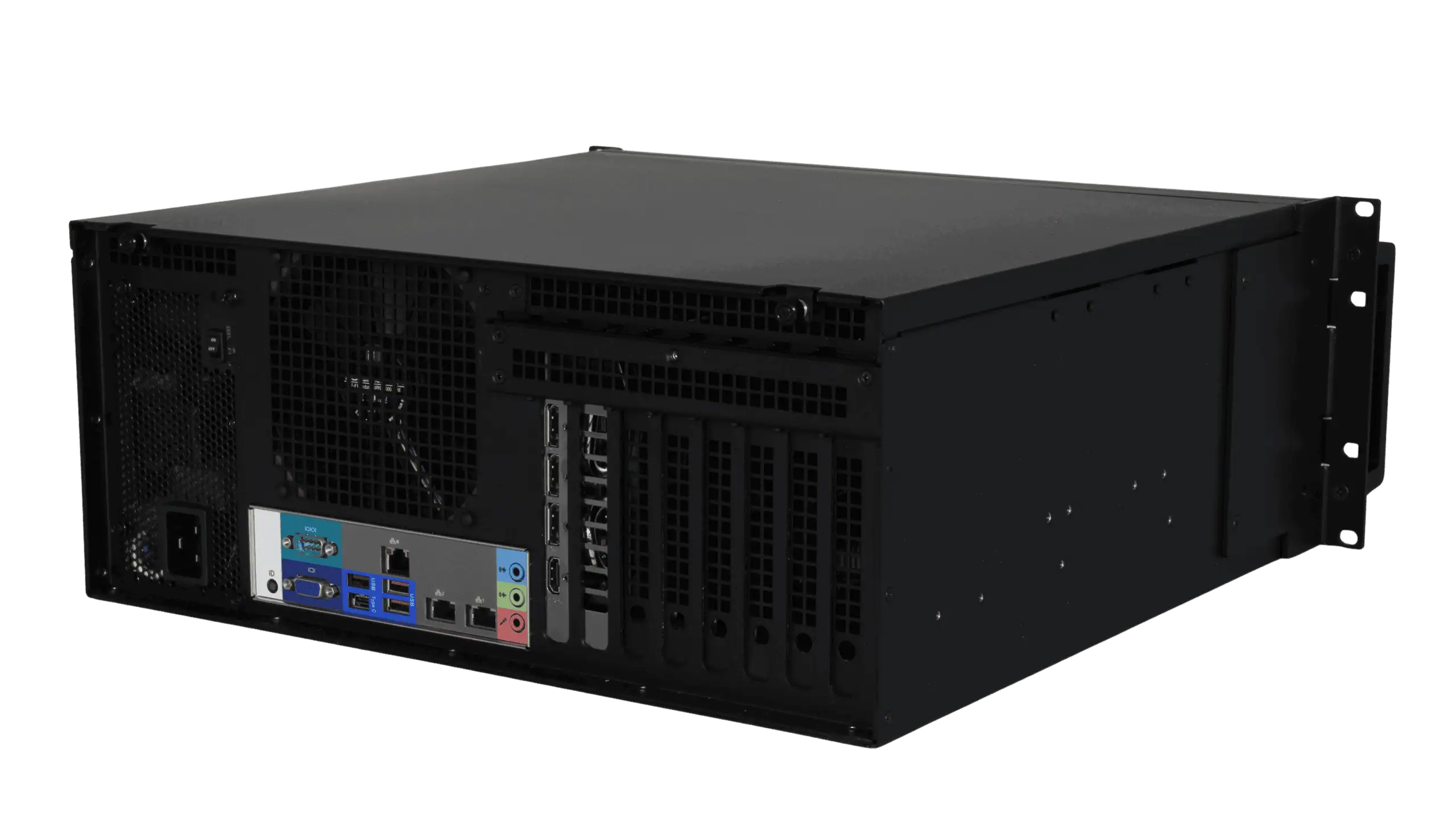

4U Nano Rear Mount
Standard Fixed Rear Support Kit
4U Nano reverse mount
Optionaler Reverse Mounting Kit

Unser unglaublich leistungsfähiger 4U Nano bietet die meisten Erweiterungsmöglichkeiten für rechen- und grafikintensive Anwendungen und ist ein Biest von einem Rechner, der die Kreativität in neue Höhen treibt.

Filtern Sie nach Ihren Präferenzen und erkunden Sie die Registerkarten, um den richtigen PC für Ihre Anforderungen zu finden

Processor Icon
Feature Icon
Reset Filter
Entry Level

Diese Einsteiger-PCs sind unsere günstigsten PCs. Sie sind einfach gehalten und verfügen über erschwingliche, funktionale Spezifikationen, die genau das leisten, was Sie brauchen.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model C512L C514KL C712KL C912KL C714KL C914KL
Zur Wunschliste hinzufügen
Preis €1,294.04 +VAT €1,606.72 +VAT €1,638.56 +VAT €1,706.48 +VAT €1,797.77 +VAT €1,905.68 +VAT
Typische Vorlaufzeit 5 Working Days 5 Working Days 5 Working Days 5 Working Days 5 Working Days 5 Working Days
CPU
i5-12400 2.5GHz 6C/12T
i5-14600K 3.5GHz 14C/20T
i7-12700K 3.6 GHz 12C/20T
i9-12900K 3.2GHz 16C/24T
i7-14700K 3.4GHz 20C/28T
i9-14900K 3.2GHz 24C/32T
RAM
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 128GB
HDD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 NVmE Crucial P3 SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX Intel UHD 730 with HDMI , DisplayPort Output(s) Intel UHD 770 with HDMI , DisplayPort Output(s) Intel UHD 770 with HDMI , DisplayPort Output(s) Intel UHD 770 with HDMI , DisplayPort Output(s) Intel UHD 770 with HDMI , DisplayPort Output(s) Intel UHD 770 with HDMI , DisplayPort Output(s)
Spezifikation PDF
Garantieerweiterung
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available
LAN Realtek 2.5Gb LAN (2.5Gb/s) Realtek 2.5Gb LAN (2.5Gb/s) Realtek 2.5Gb LAN (2.5Gb/s) Realtek 2.5Gb LAN (2.5Gb/s) Realtek 2.5Gb LAN (2.5Gb/s) Realtek 2.5Gb LAN (2.5Gb/s)
Serial Ports 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available
Thunderbolt Ports Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product
Audio Ports 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In)
Erweiterungs Slot 1 PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0)
Erweiterungs Slot 2 PCIe x16 (Full Height)(x1 Lanes, Gen 3.0) PCIe x16 (Full Height)(x1 Lanes, Gen 3.0) PCIe x16 (Full Height)(x1 Lanes, Gen 3.0) PCIe x16 (Full Height)(x1 Lanes, Gen 3.0) PCIe x16 (Full Height)(x1 Lanes, Gen 3.0) PCIe x16 (Full Height)(x1 Lanes, Gen 3.0)
Erweiterungs Slot 4 PCIe x16 (Full Height)(x4 Lanes, Gen 4.0) PCIe x16 (Full Height)(x4 Lanes, Gen 4.0) PCIe x16 (Full Height)(x4 Lanes, Gen 4.0) PCIe x16 (Full Height)(x4 Lanes, Gen 4.0) PCIe x16 (Full Height)(x4 Lanes, Gen 4.0) PCIe x16 (Full Height)(x4 Lanes, Gen 4.0)
Workstation

Unsere Geräte der Workstation-Klasse verbessern das PC-Erlebnis noch weiter und verfügen über die neuesten Technologien und Funktionen. Diese brillanten Geräte sind für den harten und ständigen Einsatz konzipiert und helfen Ihnen, mehr aus Ihrem Motherboard herauszuholen.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model W514K W713K W714K W914K
Zur Wunschliste hinzufügen
Preis €2,047.34 +VAT €2,152.02 +VAT €2,235.76 +VAT €2,342.18 +VAT
Typische Vorlaufzeit 5 Working Days 5 Working Days 5 Working Days 5 Working Days
CPU
i5-14600K 3.5GHz 14C/20T
i7-13700K 3.4GHz 16C/24T
i7-14700K 3.4GHz 20C/28T
i9-14900K 3.2GHz 24C/32T
RAM
8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
HDD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD 500GB M.2 PCIe 4.0 Samsung 980 Pro SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX Intel UHD 770 with HDMI Output(s) Intel UHD 770 with HDMI Output(s) Intel UHD 770 with HDMI Output(s) Intel UHD 770 with HDMI Output(s)
Spezifikation PDF
Garantieerweiterung
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Standard Only Standard 2 year Return to Base. RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available Not quoted options available Not quoted options available
LAN Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s) Marvell AQtion Ethernet (10Gb/s) & Intel (2.5Gb/s)
Serial Ports 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available
Thunderbolt Ports 2x Gen4 Ports 2x Gen4 Ports 2x Gen4 Ports 2x Gen4 Ports
Audio Ports 5x 3.5mm Ports 5x 3.5mm Ports 5x 3.5mm Ports 5x 3.5mm Ports
Erweiterungs Slot 1 PCIe x16 (Full Height)(x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16/x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16/x8 Lanes, Gen 5.0)
Erweiterungs Slot 2 PCIe x16 (Full Height)(x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x8 Lanes, Gen 5.0)
Erweiterungs Slot 3 PCIe x16 (Full Height) (x4 Lanes, Gen 4.0) PCIe x16 (Full Height) (x4 Lanes, Gen 4.0) PCIe x16 (Full Height) (x4 Lanes, Gen 4.0) PCIe x16 (Full Height) (x4 Lanes, Gen 4.0)
Performance

Diese PCs sind die Spitzenmodelle unserer Produktfamilie. Sie wurden entwickelt, um konstant die beste Leistung ihrer Klasse zu liefern und bieten außergewöhnliche Unterstützung für die neuesten Prozessoren, Grafikkarten und High-End-Komponenten.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model R776X R979X R9795X P710 RT760X RT770X RT765WX RT780X RT785WX RT795WX
Zur Wunschliste hinzufügen
Preis €1,760.69 +VAT €2,035.70 +VAT €2,122.32 +VAT €2,854.09 +VAT €4,641.82 +VAT €5,858.51 +VAT €7,261.50 +VAT €9,152.51 +VAT €13,263.43 +VAT €16,969.18 +VAT
Typische Vorlaufzeit 5 Working Days 5 Working Days 5 Working Days 5 Working Days 8 Working Days 8 Working Days 8 Working Days 8 Working Days 8 Working Days 8 Working Days
CPU
7600X 4.7GHz 6C/12T
7900X 4.7GHz 12C/24T
7950X 4.5GHz 16C/32T
i9-10900X 10C/20T
7960X 4.2GHz 32C/64T
7970X 4GHz 32C/64T
7965WX PRO 3.8GHz 24C/48T
7980X 3.2GHz 64C/128T
7985WX PRO 3.2GHz 64C/128T
7995WX PRO 2.5GHz 96C/192T
RAM
16GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
16GB Crucial DDR5 4800MHz DIMM Maximum configurable RAM for this unit is 128GB
8GB Crucial DDR4 3200MHz DIMM Maximum configurable RAM for this unit is 256GB
4x 16GB Kingston DDR5 5600MHz RDIMM ECC Maximum configurable RAM for this unit is 1024GB
4x 16GB Kingston DDR5 5600MHz RDIMM ECC Maximum configurable RAM for this unit is 1024GB
8x 16GB Kingston DDR5 5600MHz RDIMM ECC Maximum configurable RAM for this unit is 2048GB
4x 16GB Kingston DDR5 5600MHz RDIMM ECC Maximum configurable RAM for this unit is 1024GB
8x 16GB Kingston DDR5 5600MHz RDIMM ECC Maximum configurable RAM for this unit is 2048GB
8x 16GB Kingston DDR5 5600MHz RDIMM ECC Maximum configurable RAM for this unit is 2048GB
HDD 500GB M.2 NVmE Crucial P3 SSD 500GB M.2 NVmE Crucial P3 SSD 1TB M.2 PCIe 5.0 NVMe Micron T705 SSD 1TB M.2 PCIe 5.0 NVMe Micron T705 SSD 1TB M.2 PCIe 5.0 NVMe Micron T705 SSD 1TB M.2 PCIe 5.0 NVMe Micron T705 SSD 1TB M.2 PCIe 5.0 NVMe Micron T705 SSD 1TB M.2 PCIe 5.0 NVMe Micron T705 SSD
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX None None None No Motherboard Graphics Outputs - PCIe GPU Required None None ASPEED AST2600 (VGA Only) with DisplayPort Output(s) None ASPEED AST2600 (VGA Only) with DisplayPort Output(s) ASPEED AST2600 (VGA Only) with DisplayPort Output(s)
Spezifikation PDF
Garantieerweiterung
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available Not quoted options available
LAN Intel i225-V (2.5Gb/s) & Marvell® AQtion AQC113CS 10Gb (10Gb/s) Intel i225-V (2.5Gb/s) & Marvell® AQtion AQC113CS 10Gb (10Gb/s) Intel i225-V (2.5Gb/s) & Marvell® AQtion AQC113CS 10Gb (10Gb/s) Intel i219V (10/100/1000Mb/s) & Realtek RTL8125CG (10/100/1000/2500Mbps) Marvell AQC113 (10Gb/s) & Dragon RTL8125BG (2.5Gb/s) Marvell AQC113 (10Gb/s) & Dragon RTL8125BG (2.5Gb/s) 2x Intel X710 (10Gb/s) Marvell AQC113 (10Gb/s) & Dragon RTL8125BG (2.5Gb/s) 2x Intel X710 (10Gb/s) 2x Intel X710 (10Gb/s)
Remote Management IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management)
Serial Ports 1 Optional Ports Available 1 Optional Ports Available 1 Optional Ports Available Not available Not available Not available 1 Optional Ports Available Not available 1 Optional Ports Available 1 Optional Ports Available
Thunderbolt Ports Not Available on this Product Not Available on this Product Not Available on this Product Not Available on this Product 2x Gen4 Optional Ports Available 2x Gen4 Optional Ports Available Not Available on this Product 2x Gen4 Optional Ports Available Not Available on this Product Not Available on this Product
Audio Ports 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 3x 3.5mm Ports (Stereo Out, Mic In, Line In) 5.1 HD, 5x 3.5mm Ports & Optical Digital 2x 3.5mm Ports (Stereo Out, Mic In) & Optical Digital 2x 3.5mm Ports (Stereo Out, Mic In) & Optical Digital 2x 3.5mm Ports (Stereo Out, Mic In) & Optical Digital 2x 3.5mm Ports (Stereo Out, Mic In) & Optical Digital 2x 3.5mm Ports (Stereo Out, Mic In) & Optical Digital 2x 3.5mm Ports (Stereo Out, Mic In) & Optical Digital
Erweiterungs Slot 1 PCIe x16 (Full Height) PCIe x16 (Full Height) PCIe x16 (Full Height) PCIe x16 (Full Height)(x16 Lanes, Gen 3.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0)
Erweiterungs Slot 2 Not available with this case Not available with this case Not available with this case PCIe x16 (Full Height)(x1 Lanes, Gen 3.0) PCIe x16 (Full Height)(x4 Lanes, Gen 4.0) PCIe x16 (Full Height)(x4 Lanes, Gen 4.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x4 Lanes, Gen 4.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0)
Erweiterungs Slot 3 PCIe x16 (Full Height) PCIe x16 (Full Height) PCIe x16 (Full Height) PCIe x16 (Full Height) (x16 Lanes, Gen 3.0) PCIe x16 (Full Height) (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) (x16 Lanes, Gen 5.0) PCIe x16 (Full Height) (x16 Lanes, Gen 5.0)
Erweiterungs Slot 4 Not available with this case Not available with this case Not available with this case Not available with this case PCIe x16 (Full Height)(x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x8 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0)
Erweiterungs Slot 5 Not available with this case Not available with this case Not available with this case PCIe x16 (Full Height)(x16 Lanes, Gen 3.0) PCIe x16 (Full Height)(x8 Lanes, Gen 4.0) PCIe x16 (Full Height)(x8 Lanes, Gen 4.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x8 Lanes, Gen 4.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0)
Erweiterungs Slot 6 Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) Not available with this case PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0)
Erweiterungs Slot 7 Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case Not available with this case PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) Not available with this case PCIe x16 (Full Height)(x16 Lanes, Gen 5.0) PCIe x16 (Full Height)(x16 Lanes, Gen 5.0)
Server

Diese Architektur bietet Ihrem PC wichtige Funktionen der Serverklasse, von der IPMI-Verwaltung bis zum ECC-RAM. Diese beeindruckenden PCs sind für die Verwendung mit Windows-Desktop- und -Server-Betriebssystemen konzipiert und verbinden Leistung mit herausragender Zuverlässigkeit.

Scroll the table for more data Scroll table
mehr Spezifikationen weniger Spezifikationen
Model S613 S623 S643
Zur Wunschliste hinzufügen
Preis €1,642.73 +VAT €1,966.25 +VAT €5,207.27 +VAT
Typische Vorlaufzeit 6 Working Days 6 Working Days 6 Working Days
CPU
3204 1.9GHz 6C/6T
4110 2.1GHz 8C/16T
4114 2.2GHz 18C/36T
RAM
16GB Micron DDR4 3200MHz RDIMM ECC Maximum configurable RAM for this unit is 512GB
16GB Micron DDR4 3200MHz UDIMM ECC Maximum configurable RAM for this unit is 512GB
16GB Micron DDR4 3200MHz RDIMM ECC Maximum configurable RAM for this unit is 512GB
HDD Not Quoted - Options Available Not Quoted - Options Available Not Quoted - Options Available
OS nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar nicht angeboten - Optionen verfügbar
GFX ASPEED AST2500 with VGA Output(s) ASPEED AST2500 with VGA Output(s) ASPEED AST2500 with VGA Output(s)
Spezifikation PDF
Garantieerweiterung
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Upgradeable Standard 2 year Return to Base. On-site & RTB upgrade options for 3-5 years.
Motherboard Ports
DVD Not quoted options available Not quoted options available Not quoted options available
LAN 4x Marvell 88E1543 (1Gb/s) 4x Marvell 88E1543 (1Gb/s) 4x Marvell 88E1543 (1Gb/s)
Remote Management IPMI (Remote Management) IPMI (Remote Management) IPMI (Remote Management)
Serial Ports 1 1 1
Thunderbolt Ports Not Available on this Product Not Available on this Product Not Available on this Product
Audio Ports No Audio Output No Audio Output No Audio Output
Erweiterungs Slot 1 PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0) PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0) PCIe x16 (Full Height)(x16/x8 Lanes, Gen 3.0)
Erweiterungs Slot 2 PCIe x8 (Full Height)(x8 Lanes, Gen 3.0) PCIe x8 (Full Height)(x8 Lanes, Gen 3.0) PCIe x8 (Full Height)(x8 Lanes, Gen 3.0)
Erweiterungs Slot 3 PCIe x16 (Full Height) (x16/x8 Lanes, Gen 3.0) PCIe x16 (Full Height) (x16/x8 Lanes, Gen 3.0) PCIe x16 (Full Height) (x16/x8 Lanes, Gen 3.0)
Erweiterungs Slot 4 PCIe x8 (Full Height)(x8 Lanes, Gen 3.0) PCIe x8 (Full Height)(x8 Lanes, Gen 3.0) PCIe x8 (Full Height)(x8 Lanes, Gen 3.0)
Erweiterungs Slot 5 PCIe x8 (Full Height)(x8 Lanes, Gen 3.0) PCIe x8 (Full Height)(x8 Lanes, Gen 3.0) PCIe x8 (Full Height)(x8 Lanes, Gen 3.0)
