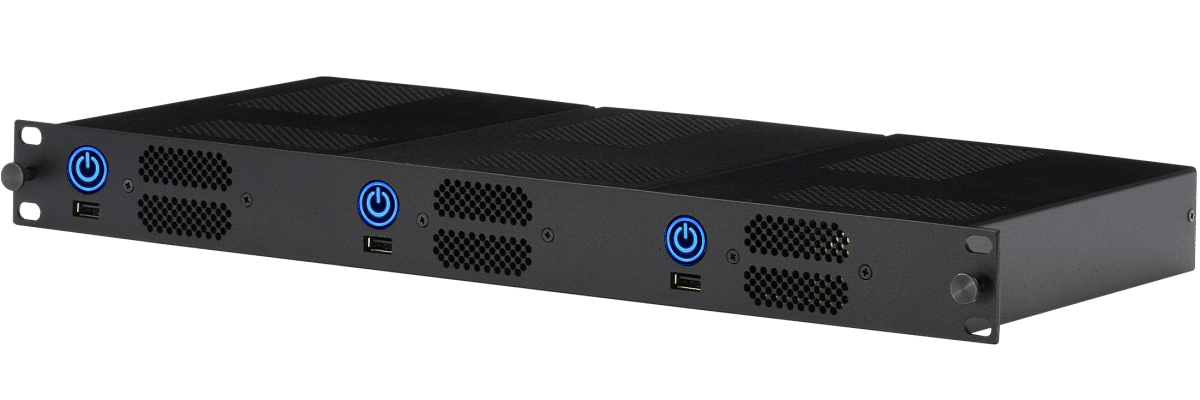

1U NUC


Im Jahr 2015 machten wir uns daran, den allerersten rack-montagefähigen Intel NUC zu entwickeln. Unser Ziel? Die kompakte Leistung des Intel NUC zu nehmen und perfekt für Rack-Schränke anzupassen.

Wir haben es geschafft, indem wir ein Gehäuse entwarfen, das drei Intel NUCs in nur 1HE Rack-Raum unterbringen konnte—maximale Dichte ohne Leistungseinbußen. Wir haben auch ein internes AC/DC-Netzteil integriert, damit Sie während der Installation nicht mit sperrigen Desktop-Netzteilen hantieren müssen.

Und vergessen wir nicht die Flexibilität. Mit drei Ethernet-Anschlüssen, Power-over-Ethernet-Unterstützung und einem RS232-Anschluss haben wir reichlich Erweiterungsoptionen eingebaut, um Ihre Anforderungen zu erfüllen.

Es geht darum, Einfachheit, Leistung und intelligentes Design zu kombinieren.

Gehäusespezifikation

  • Größe (BxTxH): 146x200x44.4mm
  • Gewicht: 3.5 KG
  • Hot Swap HDD Bay: Not available with this case
  • Netzteil: 110-230VAC, 12V-20VDC or PoE++
  • PCIE Slots: Not available with this case
  • Front USB: 1x USB3.0
Konfigurieren
  • Options
  • FAQs
  • Finance

Optionen


Power over Ethernet support

Power over Ethernet (PoE) ist ideal für Installationen in anspruchsvollen Umgebungen und vereinfacht die Rackmontage, da sowohl Daten als auch Strom über ein einziges Kabel zugeführt werden können. Genießen Sie zuverlässige Konnektivität, einen aufgeräumten Kommunikationsschrank und die Freiheit von PoE++.

Bis zu 3 Intel NUCs montiert in 1U

Es ist oft der Fall, dass die Rack-Montage eines PCs zu komplex oder für eine Installation unerwünscht ist – hier kommen unsere Mini-PCs zur Geltung. Vollständig wandmontierbar und ordentlich untergebracht, bieten sie eine einfache, rationalisierte Alternative zur Rack-Montage für Umgebungen mit wenig Platz.

3 Intel NUC in 1U

Mehrere Ethernet-Ports

“Maximieren Sie die Ethernet-Leistung mit mehreren Ports in unseren Mini-PCs. Diese Dual-Ethernet-Option bietet kritische Netzwerk-Failover, Redundanz und verbesserte Durchsatzraten und ist unverzichtbar für Systeme, die auf hohe Verfügbarkeit angewiesen sind.

Dual NIC Intel NUC

FAQs


  • Technische Produktinformationen
  • Allgemeine Informationen
Bei konkreten Fragen erreichen Sie uns telefonisch unter +49 (0)6187 290150.
Video Encode and Decode GPU Support Matrix

https://developer.nvidia.com/video-encode-and-decode-gpu-support-matrix-new

Support Portal ansehen
NUC Environmental Specifications

  • Ambient Operating 0°C to +50°C (Local ambient temperature inside the chassis) * Processor performance may automatically decrease when the system operates in the top 5 °C of the ambient operating temperature ranges above.
  • Sustained Storage Limits (i.e. warehouse):-20°C to +40°C
  • Short Duration Limits (i.e. shipping): -40°C to +60°C

If the external ambient temperature exceeds 40°C, further thermal testing is required to ensure components do not exceed their maximum operating temperature.


Note: The operating temperature of the board may be determined by measuring the air temperature from the junction of

the heatsink fins and fan, next to the attachment screw, in a closed chassis, while the system is in operation.

Note: Before attempting to operate this board, the overall temperature of the board must be above the minimum

operating temperature specified. It is recommended that the board temperature be at least room temperature

before attempting to power on the board. The operating and non-operating environment must avoid condensing

humidity.

Support Portal ansehen
